Description

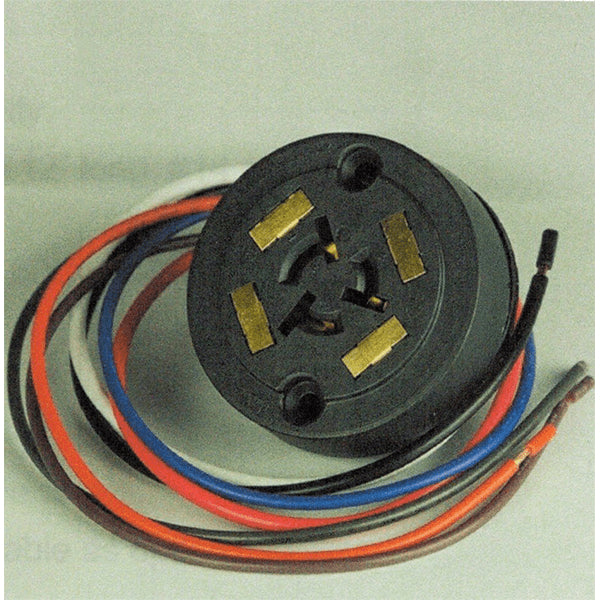

Pemco Lighting 7-Pin Twist Lock Receptable
Features:
- UL773/ANSI C136.10-2006 Receptacle
- ANSI C136.41-2013 Dimming Control Between an External Locking Type Photocontrol and Ballast or Driver
- UV Stabilized Polycarbonate
- 12" #14 AWG AWM1015 (Power Leads); 12" #18 AWG, AWM1015 (Signal Leads)
- 30 VDC, 0.25A Max Signal Loading
- Signal Contacts (4) - Nickel Plated Phosphor Bronze, Gold Plated
- Skirt Gasket to Achieve IP65 Rating
Electrical Specifications:
- Input Voltage: 480VAC
- Ambient Temperature: -40?F ~ +176?F
- Relative Humidity: 99%
- Listing: UL Recognized Component Mark
