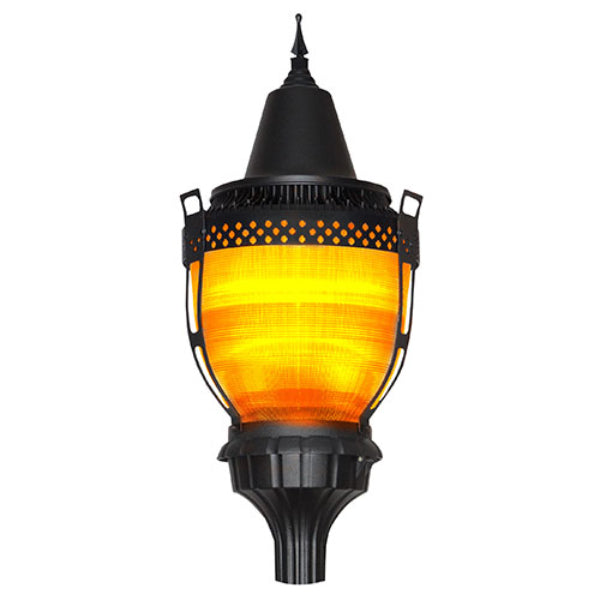

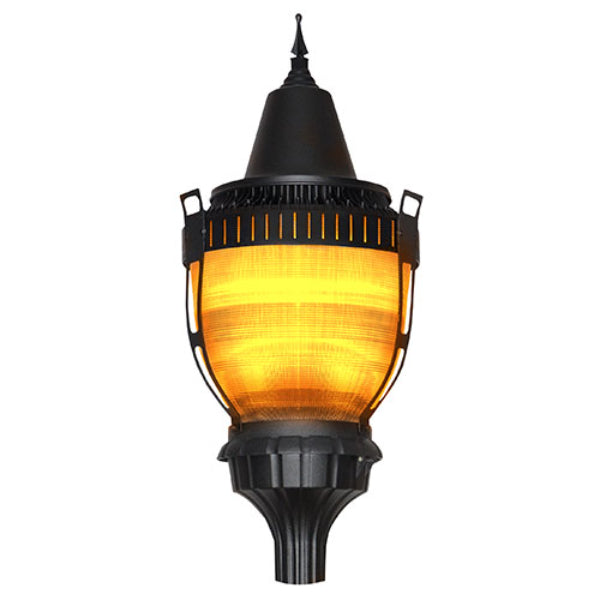

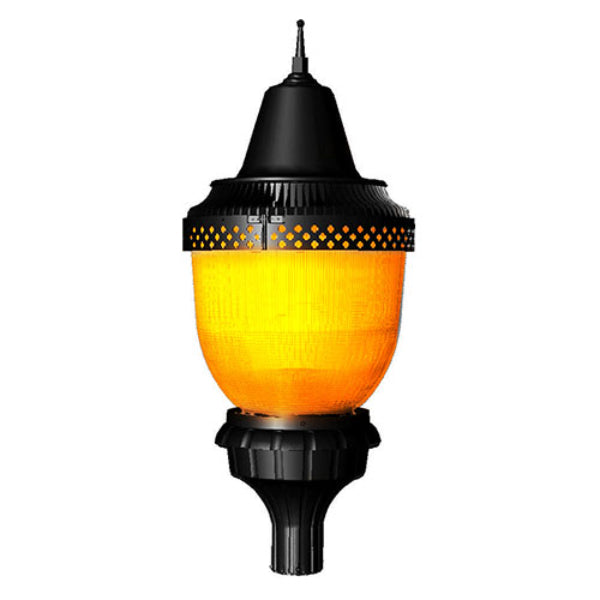

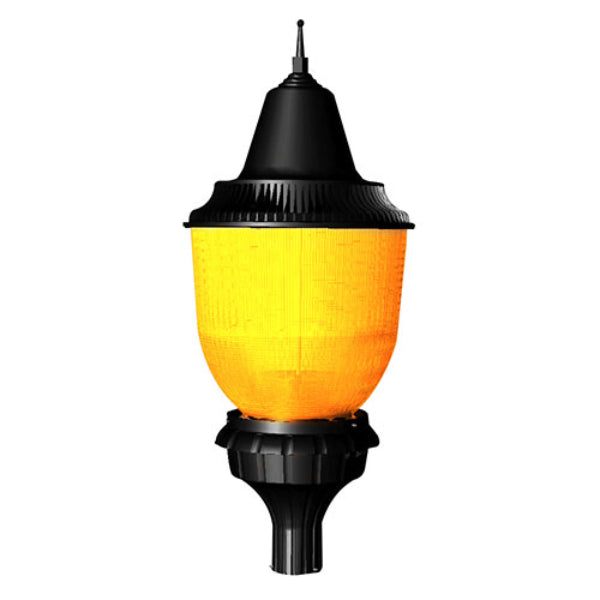

Pemco Lighting Amber Lexington 3 Historic Post Top

Pemco Lighting Amber Lexington 3 Historic Post Top

Specifications & Features

Housing:

• Sand Cast Aluminum Housing, Includes Mounting Hardware. Decorative Spun Aluminum Cap. Finals Have Spun Aluminum Base with Cast Aluminum Fleur-De-Lis or Spear. Stamped and Formed Heavy Duty Aluminum Clamp Bands. Available as Standard Clamp Band, Deluxe Clamp Band with Decorative Band, or Premium Clamp Band with Decorative Band with Three Decorative Supports. Includes Black Oxide Mounting Hardware.

Listing & Ratings:
ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment.

Finish:
Textured Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

Lens:
LexaLite Lindy Prismatic Acrylic Globes, Type III or Type V, with 9? Neck.

Mounting Options:
Accommodates "P3" 2?" O.D. x 3" Tenons

AmberLED:
Aluminum Boards; Array has IP67 rating

Wattage:
46w Array: 46w, System: 52w (175w HID Equivalent)
78w Array: 77.6w, System: 82w (250w HID Equivalent)

Driver:
Electronic Driver, 120-277V, 50/60Hz: Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.

Additional Information

Product Files

Click for Pemco Lighting LEX3Q-AM Spec Sheet
