Description

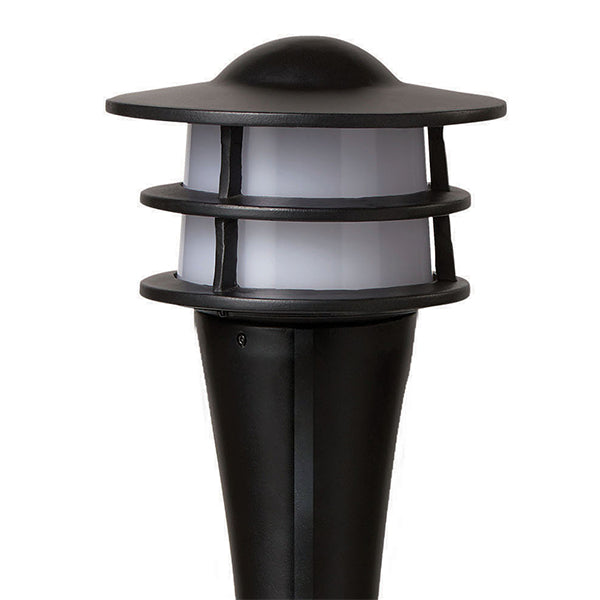

Pemco Lighting Amber Seastar 10 Outdoor Post Top
Specification and Features:
Housing:
- Die Cast Aluminum Housing, Integral Heat Sinking.
Finish:
- Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens:
- Clear UV-Stabilized Polycarbonate Vandal-Resistant Array Lens with Integral Optics. Gasketed to Seal LED Array. Optional SoftLED Opal UV-Stablized Polycarbonate Vandal-Resistant Lens Available.
Mounting:
- Post Top Accommodates "P3" 2?" O.D. x 3" Tenon.
AmberLED:
- Aluminum Boards
Wattage:
- 19w Array: 19w, System: 21.4w
Driver:
- Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100%
Controls:
- Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing.
Warranty:
- 5-Year Warranty for -40°C to +50°C Environment.
Additional Information
| CCT | Amber |
|---|---|
| Controls & Options | 3-Pin TwistLock Photocell Rec, Microwave/Motion Sensor |
| Distribution | Type II, Type III, Type IV, Type V |
| Globe/Lens | Clear Poly, White/Opal Poly |
