Description

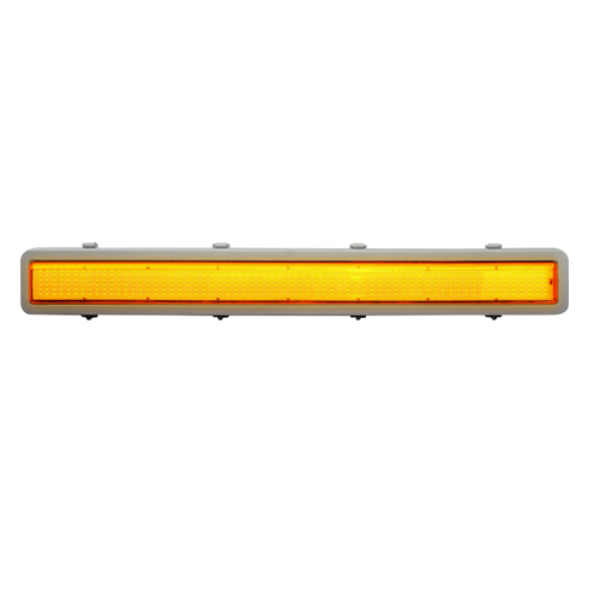

Pemco Lighting AmberLED 48" Utility Outdoor Linear Light
Housing:
- Heavy-Duty Die Cast Aluminum Housing and Top Frame. Can Be Tapped for Side Conduit Entry.
Listing & Ratings:
- ETL: Listed for Wet Locations, ANSI/UL 1598, 8750. Note: If using the Quick-Mount Bracket, the power feed must be made at the drill point locations on the sides of the fixture, not through the Bracket to maintain the Wet Locations listing.
- IP66 Sealed LED Compartment.
Finish:
- Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens:
- Clear UV-Stabilized Polycarbonate or SoftLED LumaLens Opal UV-Stabilized Polycarbonate Vandal-Resistant Lens
Mounting Options:
- Surface Mount or Use Optional Stainless Steel Quick-Mount Bracket, Adjustable Bracket, or Yoke.
AmberLED LED:
- Aluminum Boards
Wattage:
- Array: 87w, System: 93w; (150-250w HID Equivalent)
Driver:
- Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Additional Information
| Distribution | Wide |
|---|---|
| Globe/Lens | Clear Poly |
| Controls & Options | Battery Backup, Double Fuse, Single Fuse |
