Description

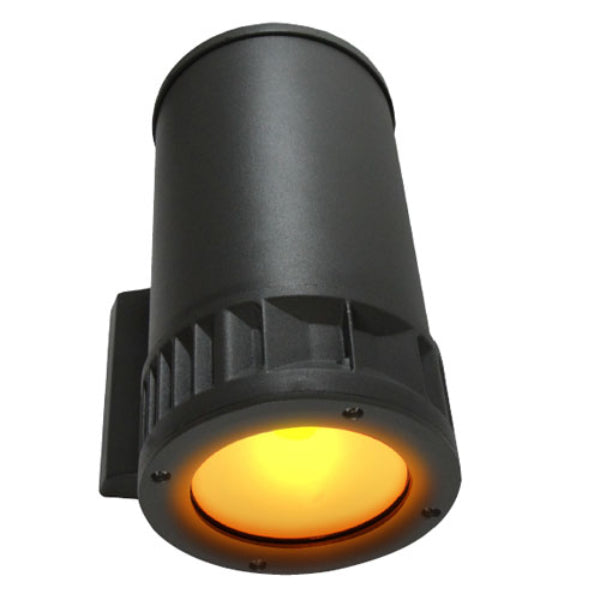

Pemco Lighting AmberLED Compass Up or Down Light
Specifications & Features
Housing: Extruded Round Aluminum Housing with Built-in Heat Sinks. Listing & Ratings: ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment. Finish: Textured Architectural Bronze or Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request. Lens: Tempered Clear Flat Glass Lens Mounting Options: Mount Over a 4" Recessed Outlet Box. AmberLED:Aluminum Boards Wattage: AmberLED Array: 17w, System: 21w Driver: Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps. Controls: Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with Pemco Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers. Warranty: 5-Year Warranty for -40°C to +50°C Environment.
Additional Information
| Quick Ship/BAA | |
|---|---|
| Controls & Options | Battery Backup , Button-Eye Photo Control , Double Fuse , Single Fuse |
Product Files
