Description

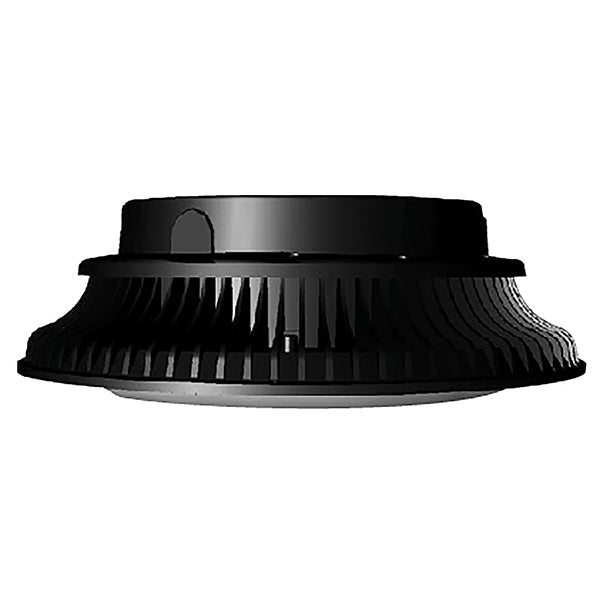

Pemco Lighting AmberLED Delmar 30 Outdoor Small Canopy
Specifications & Features
Housing:
- Die Cast Aluminum Housing, Integral Heat Sinking.
Listing & Ratings:
- ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP65
Finish:
- Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens:
- Clear Polycarbonate Vandal-Resistant Array Lens to Seal LED Array
Mounting Options:
- Included Easy-Hang Bracket Fits Standard 4" Electrical Box, Allowing One Person Installation.
Amber LED:
- Aluminum Boards
Wattage:
- 78w Array: 77.6w, System: 82w; (150-250w HID Equivalent)
Driver:
- Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Controls:
- Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.
Warranty:
- 5-Year Warranty for -40°C to +50°C Environment.
Additional Information
| Distribution | Type V |
|---|---|
| Globe/Lens | Clear Poly |
| Controls & Options | Double Fuse, Microwave/Motion Sensor, Single Fuse |
