Description

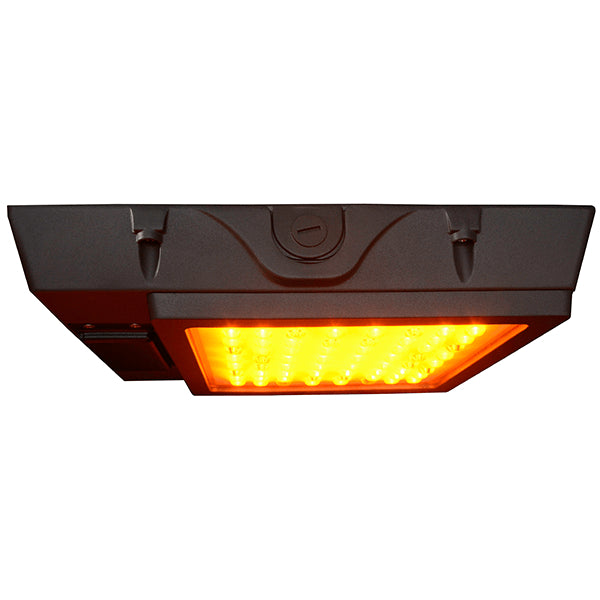

Pemco Lighting AmberLED Delmar 55 Garage Light
Specifications & Features
Housing:
- Low Profile Die Cast Aluminum Housing, ½" Coin Plugs with O-rings for Conduit or External Sensor. Built-in Sensor Housing with Color-Matched Polycarbonate Cover. A Clear Cover will be Provided When a Sensor is Ordered.
Listing & Ratings:
- ETL: Listed for Wet Locations, ANSI/UL 1598, 8750. (Damp Locations When Used with VNQM.) IP66 Sealed LED Compartment.
Finish:
- Textured Architectural Bronze or White Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens:
- Molded UV-Resistant Acrylic Optical Lens Designed for Garage Lighting Applications.
Mounting Options:
- Included Easy-Hang Bracket Fits Standard 4" Electrical Box, Allowing One-Person Installation. Optional Quick-Mount/Pendant Bracket Available.
AmberLED:
- Aluminum Boards
Driver:
- Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Controls:
- Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with LEPG Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.
Warranty:
- 5-Year Warranty for -40°C to +50°C Environment.
Additional Information
| Distribution | |
|---|---|
| Quick Ship/BAA | |
| Wattage | |
| Controls & Options | Battery Backup , Button-Eye Photo Control , Double Fuse , Microwave/Motion Sensor , Single Fuse |
