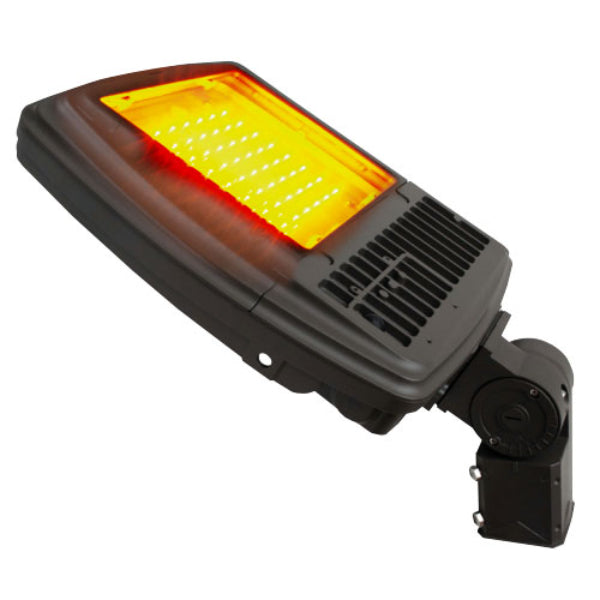

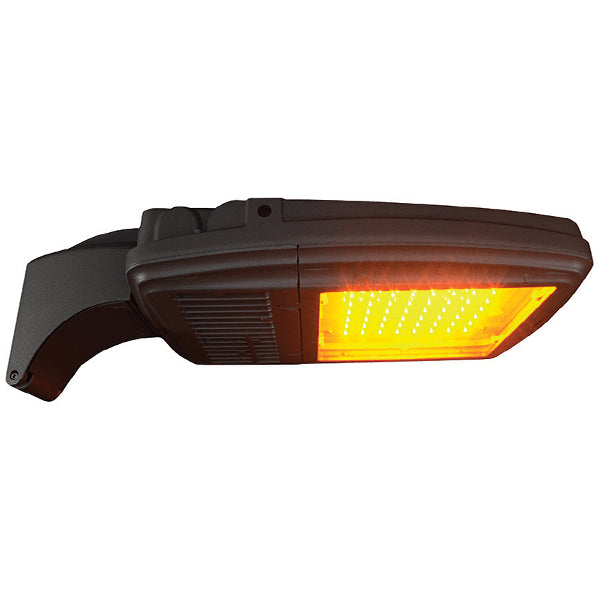

Pemco Lighting AmberLED Eagle 25 Flood Light

Pemco Lighting AmberLED Eagle 25 Flood Light

Specifications & Features

Housing:

• Die Cast Aluminum Housing and Front Frame, Integral Heat Sinking and Driver Compartment. Photocell Adaptable. Nickel-Plated Stainless Steel Hardware.

Listing & Ratings:

• ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment. Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

Lens:

• Tempered Clear Flat Glass Lens

Mounting Options:

• Mounts with Eagle Arm, Adjustable Slipfitter, 2?? Diameter Mounting Arm Adapter, Yoke, TwoPiece Bracket or Easy Hang Wall Bracket (Factory Installed).

AmberLED:

• Aluminum Boards

Wattage:

• 81-112w: Array: 80.5w, System: 86.6w; (150-250w HID Equivalent.)

Driver:

• Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.

Controls:

• Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with LEPG Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.

Warranty:

• 5-Year Warranty for -40°C to +50°C Environment.

Additional Information

Product Files

Click for Pemco Lighting EG25Q-FLOOD-AM Spec Sheet
