Description

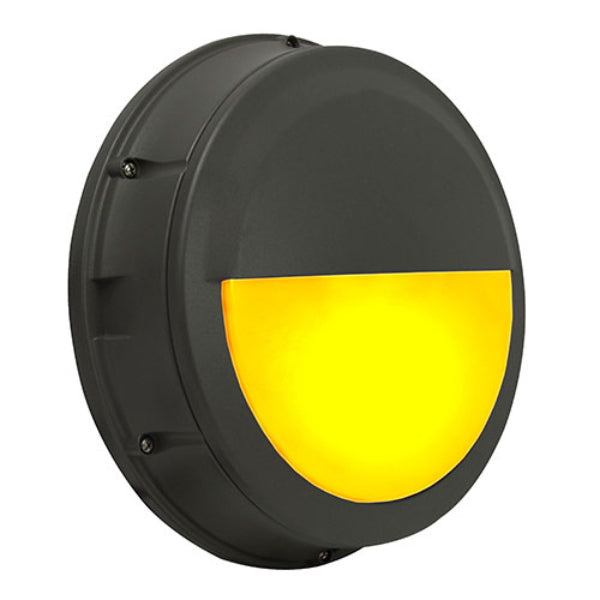

Pemco Lighting AmberLED Hatteras Round Half Cutoff Wall Mount
Specifications & Features
Housing:
- Die Cast Gasketed Aluminum Housing with Integral Heat Sinking and Driver Compartment. Nickel-Plated Stainless Steel Hardware. Photocell Adaptable.
Listing & Ratings:ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment.
Finish:Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens:SoftLED LumaLens UV-Stabilized Polycarbonate Opal Vandal-Resistant Lens Eliminates LED Hot Spots
Mounting Options:Surface Mount
AmberLED:Aluminum Boards
Wattage:17w Array: 17w, System: 18.7w
Driver:Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Controls:Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with LEPG Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.
Warranty:5-Year Warranty for -40°C to +50°C Environment.
Additional Information
| CCT | |
|---|---|
| Controls & Options | Battery Backup , Double Fuse , Microwave/Motion Sensor , Pencil Photocell , Single Fuse |
| Distribution | |
| Globe/Lens | |
| Quick Ship/BAA |
Product Files
