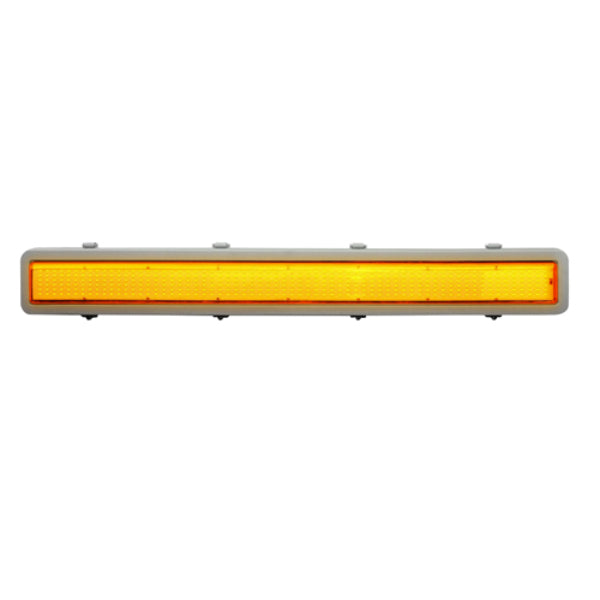

Pemco Lighting AmberLED Hazardous Location Linear Light

Pemco Lighting AmberLED Hazardous Location Linear Light

Housing:

• Heavy-Duty Die Cast Aluminum Housing and Top Frame, with ½? Tapped Coin Plug Openings for Wiring Entrance Conduits.

Listing & Ratings:

ETL Listed for Hazardous Locations Per UL844 as Follows:

• Class 1, Division 2 Groups A, B, C, D; T4 Temperature Rating
• Suitable for Wet Locations.

Finish:

• Platinum Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

Lens:

• Clear UV-Stabilized Polycarbonate or SoftLED LumaLens Opal UV-Stabilized Polycarbonate Vandal-Resistant Lens

Mounting Options:

• Mount with Stainless Steel Adjustable Bracket or Yoke. Rated for 6 #12 AWG 90°C for Through Wiring.

AmberLED LED:

• Aluminum Boards

Wattage:

• Array: 87w, System: 93w; (150-250w HID Equivalent)

Driver:

• Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps

Additional Information

Product Files

Click for Pemco Lighting HUR4AOQ-AM Spec Sheet
