Description

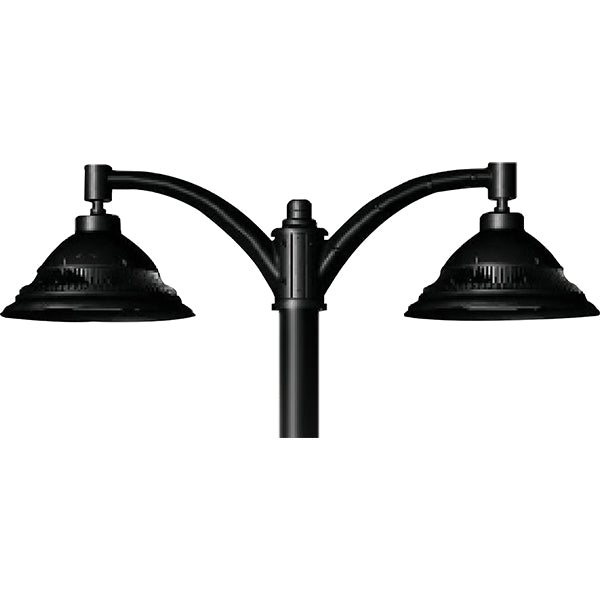

Pemco Lighting AmberLED Pastor 30 Pendant Mount
Specifications & Features
Housing:
- Die Cast Aluminum Housing, Integral Heat Sinking and Driver Compartment, Spun Aluminum Shade. Nickel-Plated Stainless Steel Hardware. Optional Twist-Lock Receptacle and Photocells are Installed on Arm Brackets (Factory Installed).
Listing & Ratings:ETL: Listed for Wet Locations, ANSI/UL 1598, 8750 IP66 Sealed LED Compartment
Finish:Textured Architectural Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens:Clear Prismatic Array Lens to Seal LED Array

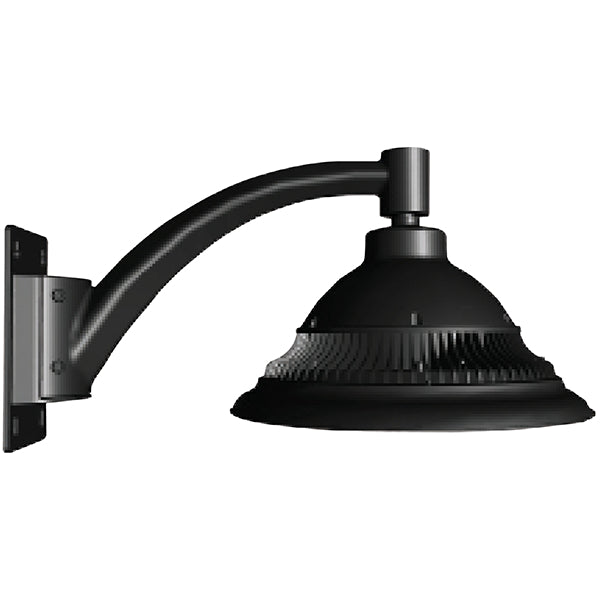

Mounting Options:Single Wall Mount Arm and Bracket, or Single or Dual Pole Mount Arms. Pole Mount Arms Accommodate 3" Tenons.
AmberLED:Aluminum Boards
Wattage:46w Array: 46w, System: 52w; (175w HID Equivalent). 78w Array: 77.6w, System: 82w; (150-250w HID Equivalent.)
Driver:Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Controls:Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with LEPG Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.
Warranty:5-Year Warranty for -40°C to +50°C Environment.
Additional Information
| CCT | |
|---|---|
| Controls & Options | |
| Distribution | |
| Globe/Lens | |
| Quick Ship/BAA |
Product Files
