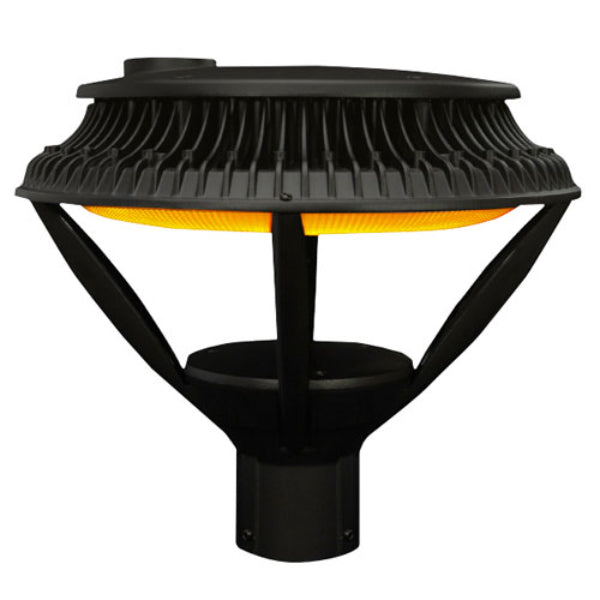

Pemco Lighting AmberLED Skylight 70RD Post Top

Pemco Lighting AmberLED Skylight 70RD Post Top

Specifications & Features

Housing:

• Die Cast Aluminum Housing, Integral Heat Sinking. Photocell Adaptable.

Listing & Ratings:

• ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment.

Finish:

• Textured Architectural Bronze or Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

Lens:

• Clear Polycarbonate Vandal-Resistant Array Lens to Seal LED Array

Mounting Options:

• Accommodates "P3" 2?" O.D. x 3" Tenons AmberLED: Aluminum Boards

Wattage:

• 78w Array: 77.6w, System: 82w; (150-250w HID Equivalent.)

Driver:

• Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.

Controls:

• Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with LEPG Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.

Warranty:

• 5-Year Warranty for -40°C to +50°C Environment

Additional Information

Product Files

Click for Pemco Lighting SKY70RD-AM Spec Sheet
