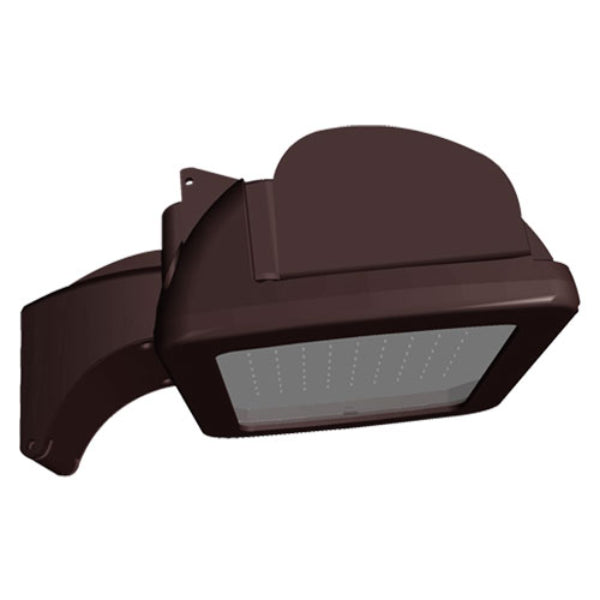

Pemco Lighting Basal 25 Outdoor Area Light

Pemco Lighting Basal 25 Outdoor Area Light

Specifications & Features

Housing:

• Die Cast Housing with Integral Heat Sinking and Front Frame. Photocell Adaptable. Includes Receptacle and Shorting Cap.

Listing & Ratings:

• ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment. Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

Lens:

• Tempered Clear Flat Glass Lens

Mounting Options:

• Mounts with Eagle Arm, 2?? Diameter Mounting Arm Adapter, Adjustable Slipfitter, Two-Piece Bracket, Easy Hang Wall Bracket or Wall Mount Box. Photocell Option Not Available When Using WB-Wall Mount Box. (Factory Installed).

EasyLED LED:

• Aluminum Boards

Wattage:

• 56w: Array: 55.8w, System: 60.6w (150w HID Equivalent) 74w: Array: 74.3w, System: 80.8w (250w HID Equivalent) 112w: Array: 111.5w, System: 121.2w (400w HID Equivalent)

Driver:

• Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.

Controls:

• Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with LEPG Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.

Warranty:

• 5-Year Warranty for -40°C to +50°C Environment.

Additional Information

Product Files

Click for Pemco Lighting BAS25Q-AL Spec Sheet
