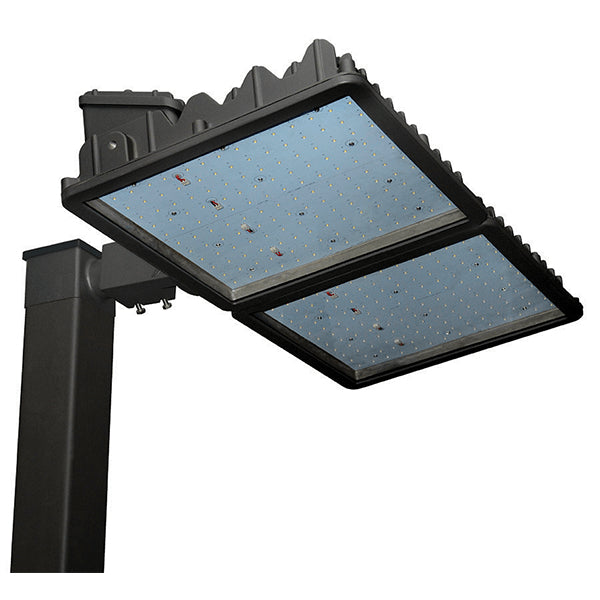

Pemco Lighting Bel Aire 55 Area, Flood and Wall Mount

Pemco Lighting Bel Aire 55 Area, Flood and Wall Mount

Specifications & Features

Housing:

• Heavy-Duty Die Cast Aluminum Housing & Front Frame, Integral Heat Sinking, Driver

Listing & Ratings:

• ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment.

Finish:

• Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

Lens:

• Tempered Clear Flat Glass Lens.

Mounting Options:

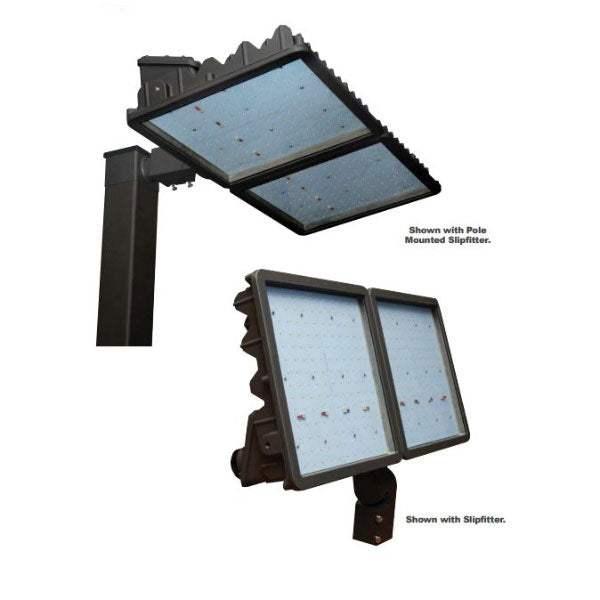

• Mount with Adjustable Slipfitter. (Factory Installed)

EasyLED LED:

• Aluminum Boards

Wattage:

• 348w Array: 348w, System: 385.7w; (1000-1500w HID Equivalent) 524w Array: 524w, System: 568w; (1000-1500w HID Equivalent)

Driver:

• Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.

Controls:

• Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with LEPG Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.

Warranty:

• 5-Year Warranty for -40°C to +50°C Environment.

Additional Information

Product Files

Click for Pemco Lighting BEL55Q-AL Spec Sheet
