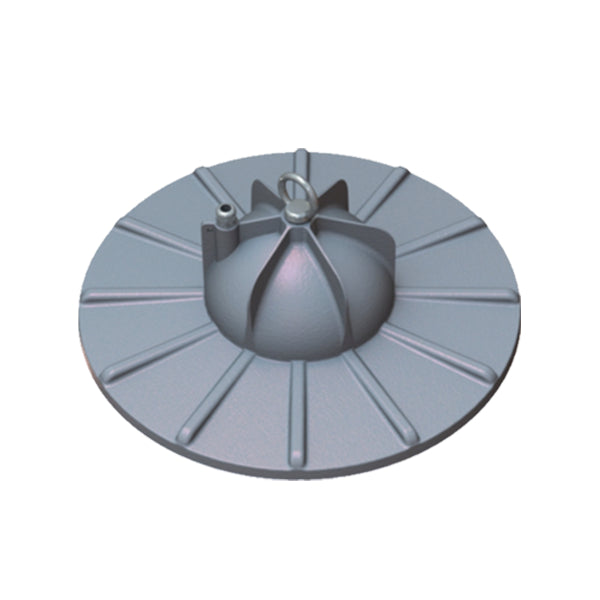

Pemco Lighting Berretto High Bay Light
Specifications & Features
The Berretto is designed for the harsh environments found in food processing, heavy manufacturing, cold storage, warehouse, and distribution facilities. The IP66 waterproof rated fixture can operate in extreme temperature ranges. This fixture is ideal for new construction or as an upgrade on existing linear fluorescent and HID high-bay fixtures
PERFORMANCE
- Lumen Output 24,000 lumens
- Lifespan L70 > 72,000 Hours
- Ambient Temperature -40°F to 131°F (-40°C to 55°C)
- Warranty 5 Years
- Efficacy Up to 160 LPW
- Power Washing Up to 1600 PSI
ELECTRICAL
- Operating Voltage 120-277V
- Input Frequency 50/60Hz
- Input Wattage 150W
- Surge Protection 4 kV (10kV or 20kV optional)
- Dimming 0-10V
- Power Input Standard 6' Yellow Cable (5-Conductor Wire to Pigtails)(Black, White, Green, Purple, Gray)
CONSTRUCTION
- IP Rating IP66
- IK Rating IK10
- Dimensions 5.4"H x 17.9"W
- Housing Die Casted Aluminum Alloy
- Finish Common Epoxy Resin Powder Coat
- Lens Polycarbonate (Not Recommended for Alkaline Industrial Cleaners)
OPTICAL
- CRI ≥80
- CCT 4000K, 5000K
- Beam Angle 90°
Additional Information
| CCT | |
|---|---|
| Controls & Options | |
| Distribution | |
| Driver |
Product Files
