Description

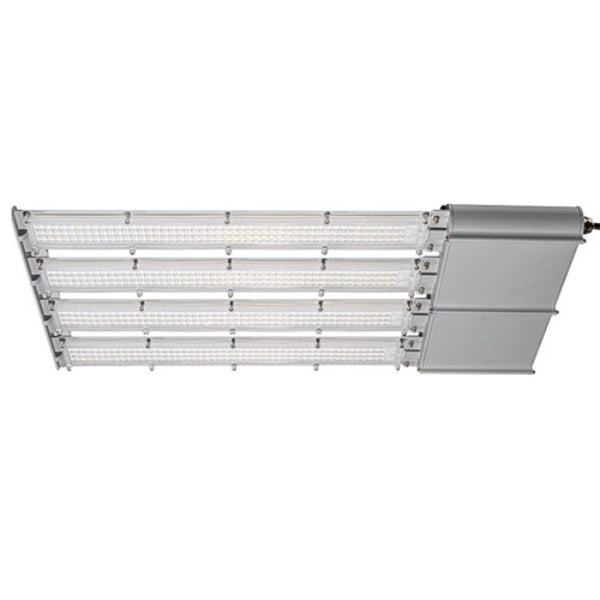

Pemco Lighting Bivio Linear Light
Specification and Features:
The Bivio is designed for the harsh environments found in food processing, heavy manufacturing, cold storage, warehouse, and distribution facilities. The IP66 waterproof rated fixture can operate in extreme temperature ranges. This fixture is ideal for new construction or as an upgrade on existing linear fluorescent and HID high-bay fixtures.:
PERFORMANCE
Lumen Output: 15,000-60,000 lumens
Lifespan: L70 > 141,500 Hours
Ambient Temperature: -40°F to 131°F (-40°C to 55°C)
Warranty: 5 Years
Efficacy: >145 LPW
Power Washing: Up to 1600 PSI
ELECTRICAL
Operating Voltage: 120-480V
Input Frequency: 50/60Hz
Input Wattage: 100-400W
Surge Protection: 10kV + 10kA standard (20kA optional)
Dimming: 0-10V
Power Input: Standard 6' Yellow Cable (5-conductor wire to pigtails)
CONSTRUCTION
IP Rating: IP66
IK Rating: IK10
Weight: 8.6 - 22.5lbs (3.9-10.2kg)
Dimensions: 2ft - 12"W x 27"L / 4ft -12"W x 52"L
Housing: Die Casted Aluminum Alloy
Finish: Common Epoxy Resin Powder Coat
Lens: Polycarbonate
OPTICAL
CRI: ≥80 (90 Optional)
CCT: 4000K, 5000K
Beam Angle: 45°+ 90° - AL, 90° - MD, 120° - WD
Additional Information
| CCT | |
|---|---|
| Controls & Options | |
| Distribution | Medium , Aisle Optics , Wide |
| Driver |
