Description

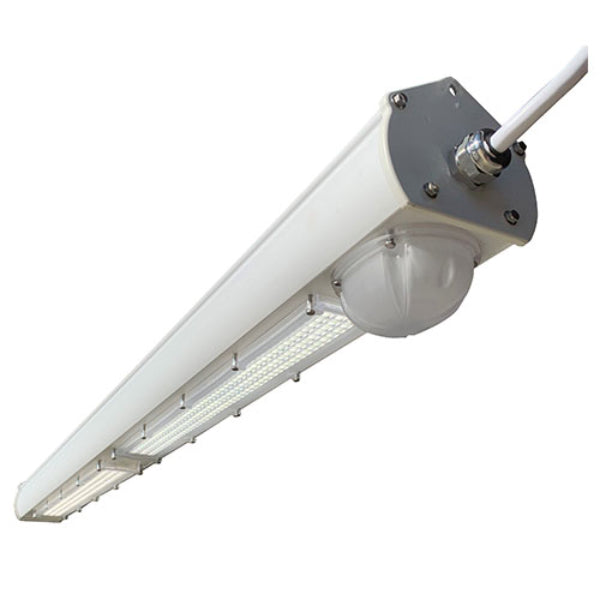

Pemco Lighting Blade NSF 2 Certified Linear High Bay
Specifications & Features
HOUSING
Heavy-Duty Extruded and Die Cast Aluminum Housing construction with silicone gaskets and stainless-steel fasteners. Drivers, sensors, and battery backup are mounted on modular internal trays for easy maintenance.
LISTING & RATINGS
ETL: Listed for Wet Locations, ANSI/UL 1598, 8750. ETL Sanitation certified to National Sanitation Foundation ANSI NSF 2 - Food Splash Zone. IP66 Sealed LED Compartment, Pressure wash rated to 1400 PSI.
FINISH
Powdercoat Finish Over a Chromate Conversion Coating.
LENS
Clear UV-Stabilized Polycarbonate or Optional DR Acrylic Lens. Medium Distribution (70? Beam) or Wide Distribution (110? Beam) available.
MOUNTING OPTIONS
Suspended or Use Optional Stainless Steel Adjustable wall/Ceiling Bracket (Field Installed) available.
EasyLED LED
Aluminum Boards
WATTAGE
82BLD2 - 2FT - 25w, 35w, or 50w Array 82BLD4 - 4FT - 50w, 75w, or 100w Array 82BLD8 - 8FT - 150w or 200w Array
DRIVER
Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2KV to 6kV depending on wattage. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
CONTROLS
Fixtures Ordered with Factory-Installed Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with 1882 Lighting Controls and May Not Function Properly with Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.
WARRANTY
5-Year Warranty for -40°C to +55°C Environment.
Additional Information
| Globe/Lens | |
|---|---|
| Controls & Options | |
| CCT | |
| Manufacture |
