Description

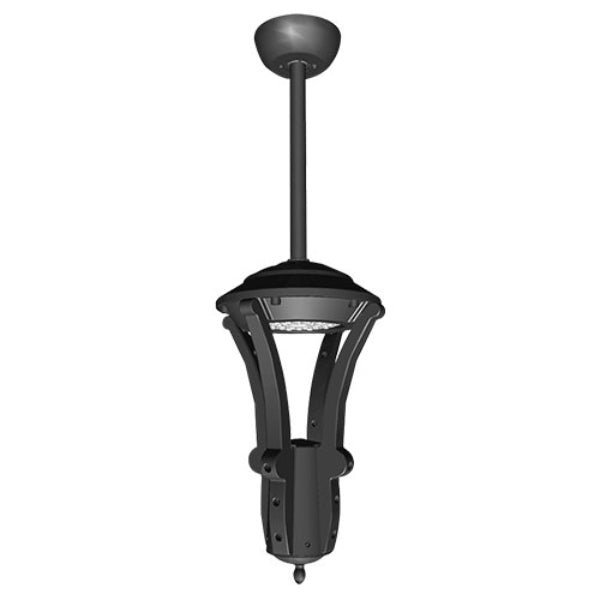

Pemco Lighting Brandywine 12 AmberLED Pendant
Specifications & Features
Housing: Die Cast Aluminum Housing, Integral Heat Sinking. Photocell Adaptable.:
- Listing & Ratings: ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment.
- Finish: Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
- Lens: Clear UV-Stabilized Polycarbonate Vandal-Resistant Array Lens with Integral Optics. Gasketed to Seal LED Array.
- Mounting Options: Post Top Accommodates "P3" 2?" O.D. x 3" Tenon, Wall Mount Includes Cast Aluminum Arm.
- AmberLED: Aluminum Boards
- Wattage: 19w Array: 19w, System: 21.4w; (70w HID Equivalent)
- Driver: Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz (28w Model Only); Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
- Warranty: 5-Year Warranty for -20°C to +40°C Environment.
Additional Information
| CCT | |
|---|---|
| Controls & Options | 3-Pin TwistLock Photocell Rec , 5-Pin TwistLock Photocell Rec , 7-Pin TwistLock Photocell Rec , Battery Backup |
| Distribution | |
| Driver | |
| Globe/Lens | |
| Quick Ship/BAA | |
| Wattage |
Product Files
