Pemco Lighting Brandywine 21 Wall Mount

Pemco Lighting Brandywine 21 Wall Mount

Specifications & Features

Housing: Die Cast Aluminum Housing, Integral Heat Sinking. Photocell Adaptable.:

• Listing & Ratings: ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment.
• Finish: Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
• Lens: Clear UV-Stabilized Polycarbonate Vandal-Resistant Array Lens with Integral Optics or SoftLED LumaLens Opal UV-Stabilized Polycarbonate Vandal-Resistant Lens. Gasketed to Seal LED Array.

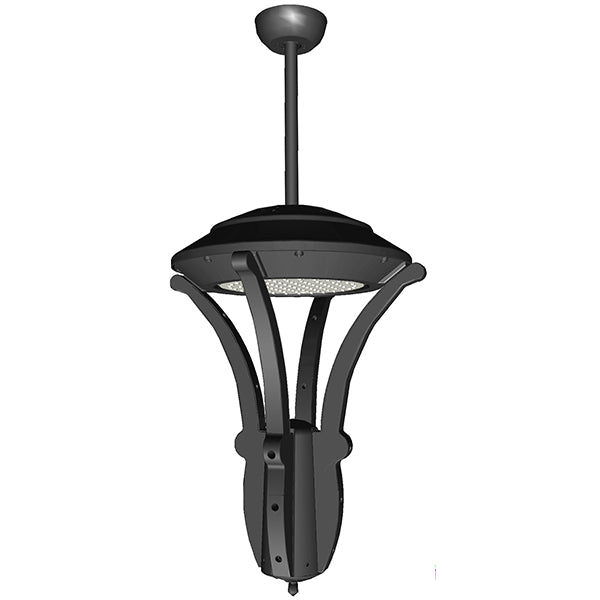

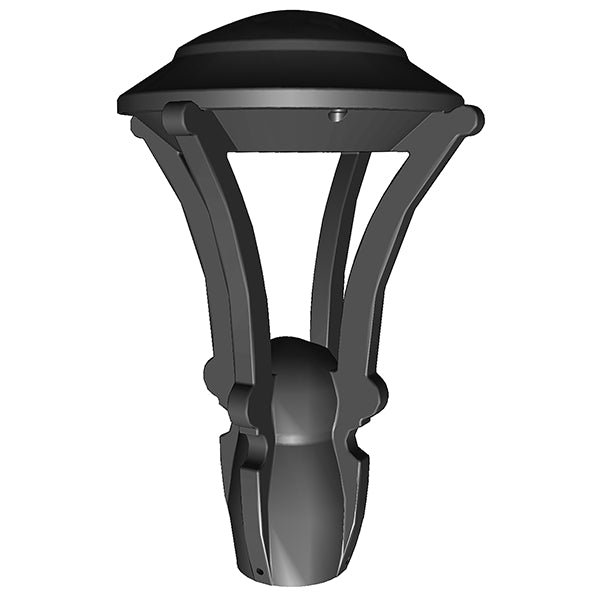

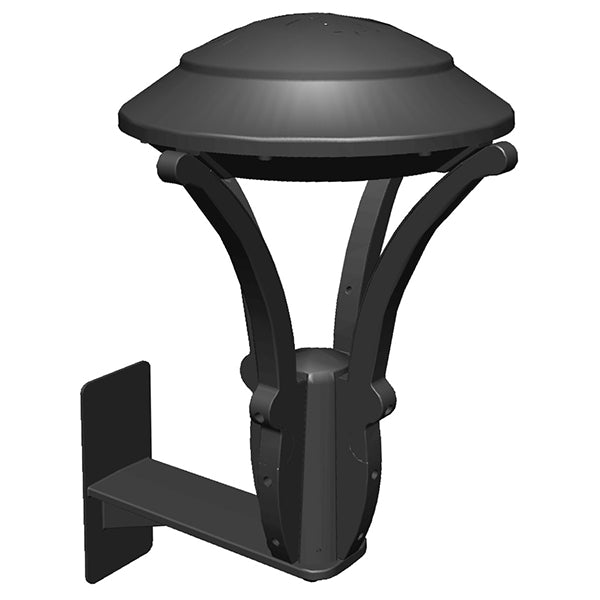

• Mounting: Post Top Accommodates "P3" 2?" O.D. x 3" Tenon, Wall Mount Includes Cast Aluminum Arm (Wall Attachment Hardware NOT Included, Must be Selected and Provided By
• Contractor), and Pendant Mount Includes 15" Swivel Stem for Mounting on Flat of
• Sloped Ceilings.
• EasyLED LED: Aluminum Boards
• Wattage: 37w Array: 37w, System: 41w; (70-150w HID Equivalent)
• 65w Array: 65.3w, System: 72w; (150-250w HID Equivalent)
• 100w Array: 100w, System: 111w; (150-250w HID Equivalent)
• 140w Array: 139.9w, System: 156w; (250-400w HID Equivalent)
• Driver: Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD
• and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
• Controls: Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with LEPG Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.
• Warranty: 5-Year Warranty for -40°C to +50°C Environment.

Additional Information

Product Files

Click for Pemco Lighting BWWS21Q Spec Sheet
