Description

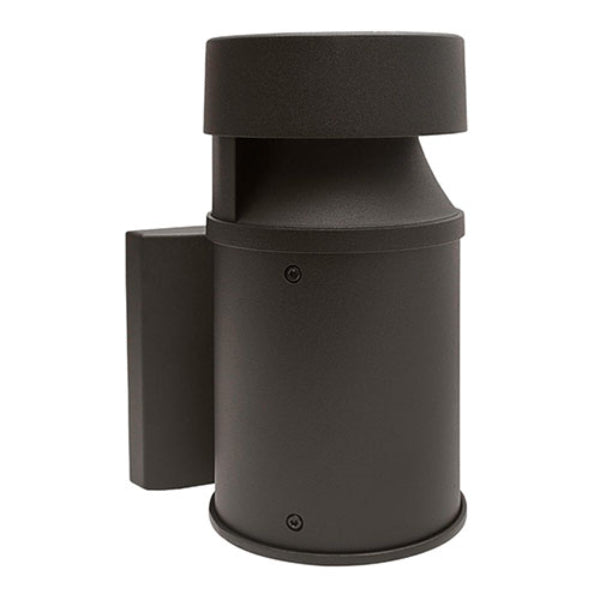

Pemco Lighting CAV 15W Wall Mount
Specifications & Features
Housing:
- Extruded Aluminum Housing with Flush Mount Easy-Hang Wall Bracket, Built-In Level, Sealed Driver Compartment. 360° Distribution, or 120° or 180° Shield.
Listing & Ratings:
- ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment.
Finish:
- Textured Architectural Bronze or Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens:
- Clear UV-Stabilized Polycarbonate Vandal-Resistant Lens
Mounting Options:
- Mount Over a 4? Recessed Outlet Box.
EasyLED LED:
- Aluminum Boards
Wattage:
- 360° Arrays: 12w & 16.6w, System: 12.9w & 18.9w
Driver:
- Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Warranty:
- 5-Year Warranty for -40°C to +50°C Environment.
Additional Information
| Quick Ship/BAA | |
|---|---|
| Globe/Lens | |
| CCT |
Product Files
