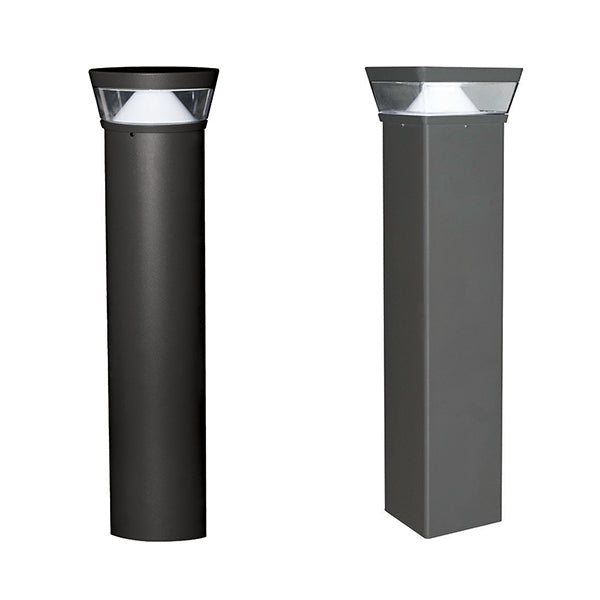

Pemco Lighting Cavalier 11 and 12 Outdoor Bollard Light

Pemco Lighting Cavalier 11 and 12 Outdoor Bollard Light

Specifications & Features

Housing:

• Extruded Aluminum Housing with Flush Mounting Base & Vandal-Resistant Screws, Flat, Dome or Pyramid Tops, Internal Driver Tray for Easy Maintenance.

Listing & Ratings:

• ETL: Listed for Wet Locations, ANSI/UL 1598, 8750 IP66 Sealed LED Compartment. Finish: Textured Architectural Bronze or Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

Reflector:

• Reflective White UV-Stabilized Polycarbonate Cone Reflector

Lens:

• Clear UV-Stabilized Polycarbonate or SoftLED LumaLens Opal UV-Stabilized Polycarbonate Vandal-Resistant Lens.

Mounting Options:

• Mounting Kit with 8? Anchor Bolts, Included.

EasyLED LED:

• Aluminum Boards

Wattage:

• Array: 23w, System: 27w; (70w HID Equivalent)

Driver:

• Electronic Driver, 120-277V, 50/60Hz or 347V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.

Controls:

• Fixtures Ordered with Factory-Installed Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with LEPG Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.

Warranty:

• 5-Year Warranty for -20°C to +40°C Environment.

Additional Information

Product Files

Click for Pemco Lighting CAV11Q-CAV12CQ Spec Sheet
