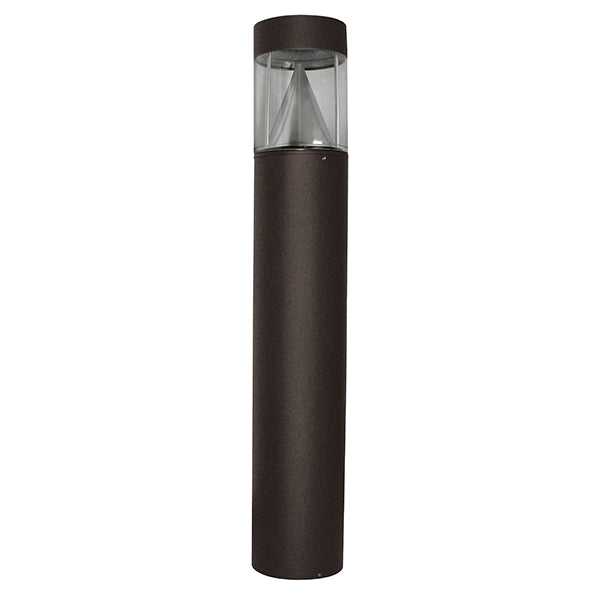

Pemco Lighting Cavalier 18 Bollard Light

Pemco Lighting Cavalier 18 Bollard Light

Specifications & Features

Housing:

• Extruded Aluminum Housing with Flush Mounting Base & Vandal-Resistant Screws, Flat Top, Internal Ballast Tray for Easy Maintenance. Bollards Can Be Cut to Custom Lengths Upon Request.

Listing & Ratings:

• ETL: Listed for Wet Locations, ANSI/UL 1598, 8750 IP65 Sealed LED Compartment.

Finish:

• Textured Architectural Bronze or Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

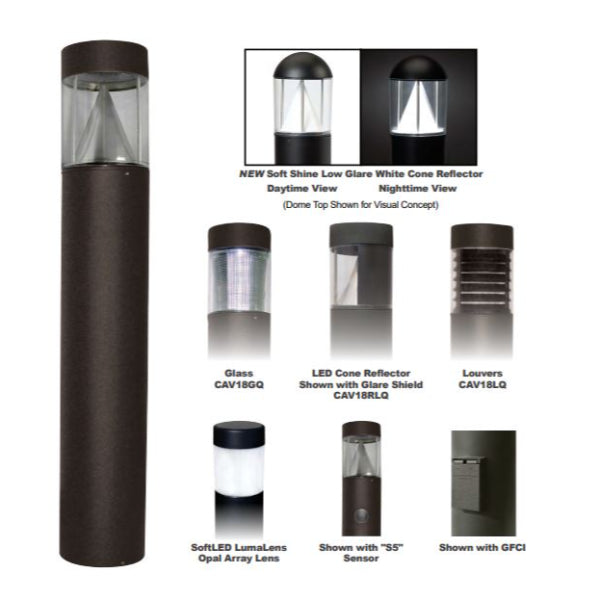

Style:

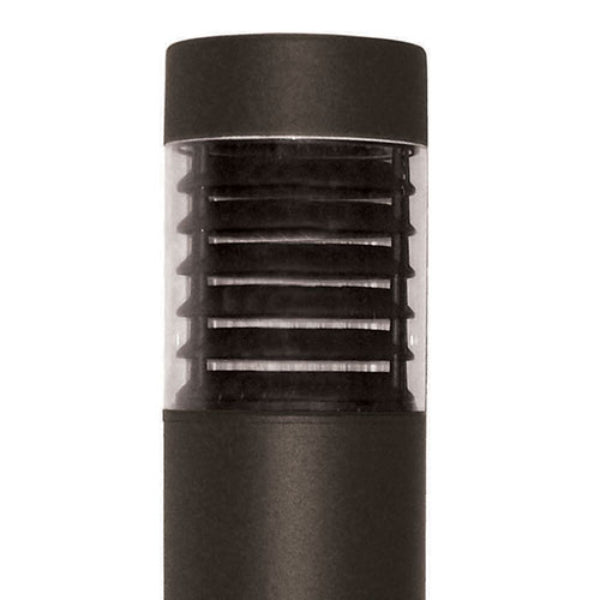

• Clear Prismatic Borosilicate Glass Refractor, Specially Designed Cone Reflector or Internal Louvers

Lens:

• Clear UV-Stabilized Polycarbonate Vandal-Resistant Lens

Mounting Options:

• Mounting Kit with 8? Anchor Bolts, Included.

EasyLED LED:

• Aluminum Boards

CCT:

• 3000K, 4000K, 5000K, 1800K CCT LED

Wattage:

• Array: 14.5w, System: 17w; (70w HID Equivalent)

Driver:

• Electronic Driver, 120-277V, 50/60Hz or 347V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.

Controls:

• Fixtures Ordered with Factory-Installed Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with LEPG Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.

Warranty:

• 5-Year Warranty for -40°C to +40°C Environment.

Additional Information

Product Files

Click for Pemco Lighting CAV18L Spec Sheet
