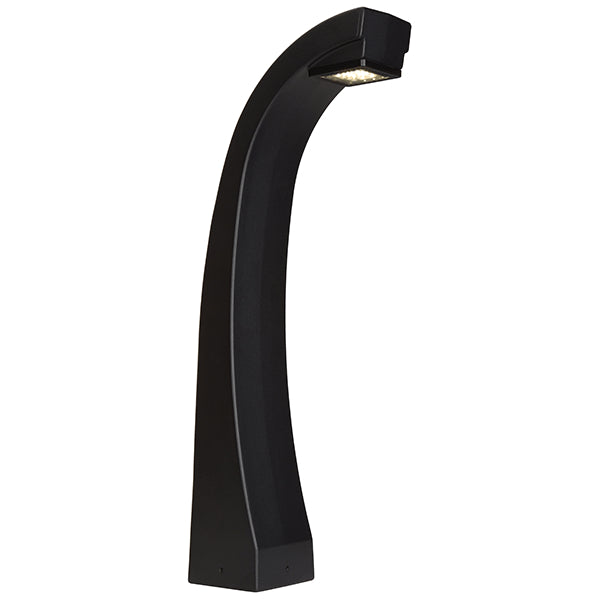

Pemco Lighting Cavalier 7 Bollard Light

Pemco Lighting Cavalier 7 Bollard Light

Specifications & Features

Housing:

• Durable One-Piece Sand Cast Aluminum Housing Features ½" Thick Walls. Includes Flush Mounting Base & Vandal-Resistant Screws, Internal Driver Tray for Easy Maintenance.

Listing & Ratings:

• ETL: Listed for Wet Locations, ANSI/UL 1598, 8750 IP65

Finish:

• Textured Architectural Bronze or Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

Lens:

• Clear UV-Stabilized Polycarbonate Vandal-Resistant Lens

Mounting Options:

• Mounting Kit with 8? Zinc-Plated Anchor Bolts, Included

EasyLED LED:

• Aluminum Boards

Wattage:

• 12w: Array 12w, System 13.6w; 18w: Array 18.2w, System 20.4w

Driver:

• Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.

Warranty:

• 5-Year Warranty for -40°C to +50°C Environment.

Additional Information

Product Files

Click for Pemco Lighting CAV7Q Spec Sheet
