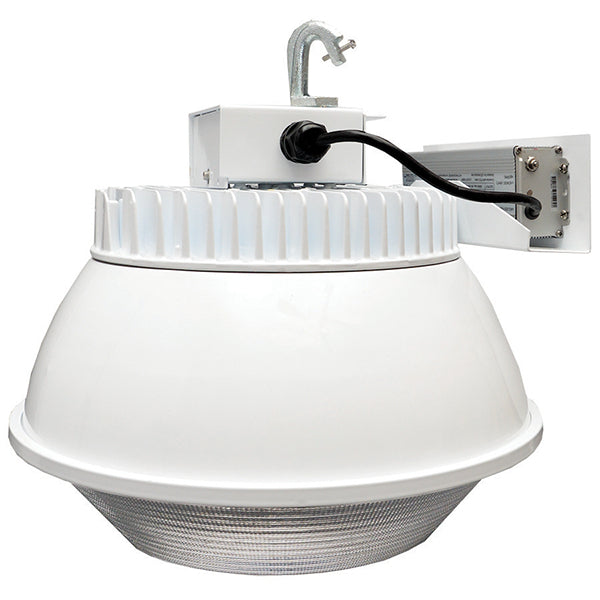

Pemco Lighting Chesapeake 30 16" High Bay for Wet Locations

Pemco Lighting Chesapeake 30 16" High Bay for Wet Locations

Specifications & Features

Housing:

• Die Cast Aluminum Housing with External Heat Sinks for Cooler Operating Temperatures. Externally Mounted Driver.

Listing & Ratings:

• ETL: Listed for Dry Locations, ANSI/UL 1598, 8750; IP65 (with Lenses); IP44 (Open)

Finish:

• White Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

Lens:

• Can Be Used Without Lens or with Tempered Clear Flat Glass Lens, Acrylic Drop Lens, Acrylic Conical Lens, UV-Stabilized Polycarbonate Drop Lens

Mounting Options:

• Mount with Included ¾" Die Cast Hook. Adjustable Junction Box Also Accepts ¾"

COB LED:

• : QSSI Cool Copper COB

Wattage:

• 120w COB: 120w; System: 123w; (250w HID Equivalent) 200w COB: 200w; System: 197w; (400w HID Equivalent)

Driver:

• Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz (120w Model Only); Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.

Controls:

• Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired

Warranty:

• 5-Year Warranty for -40°C to +50°C Environment.

Additional Information

Product Files

Click for Pemco Lighting CSP30 Spec Sheet
