Description

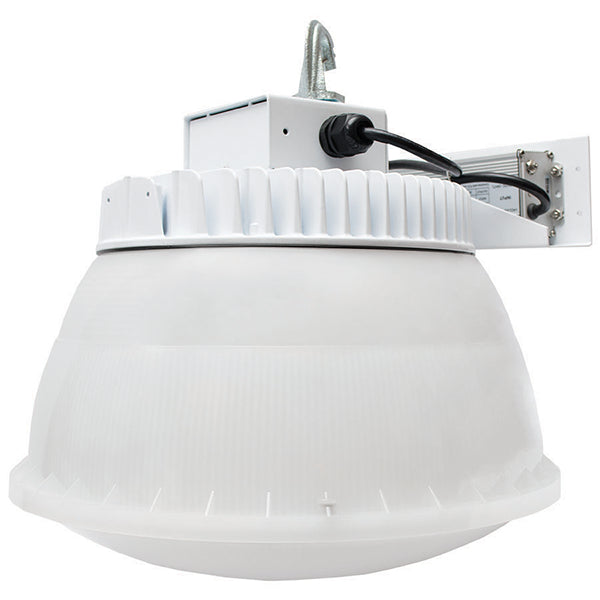

Pemco Lighting Chesapeake 31 16" High Bay for Wet Locations
Specifications & Features
Housing:
- Die Cast Aluminum Housing with External Heat Sinks for Cooler Operating Temperatures. Externally Mounted Driver.
Listing & Ratings:
- ETL: Listed for Dry Locations, ANSI/UL 1598, 8750; IP65 (with Lenses); IP44 (Open)
Finish:
- White Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens:
- Can Be Used Without Lens or with Tempered Clear Flat Glass Lens, Acrylic Drop Lens, Acrylic Conical Lens, UV-Stabilized Polycarbonate Drop Lens
Mounting Options:
- Mount with Included ¾" Die Cast Hook. Adjustable Junction Box Also Accepts ¾" Conduit.
COB LED:
- QSSI Cool Copper COB
Wattage:
- 120w COB: 120w; System: 123w; (250w HID Equivalent) 200w COB: 200w; System: 197w; (400w HID Equivalent)
Driver:
- Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz (120w Model Only); Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Controls:
- Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired
Warranty:
- 5-Year Warranty for -40°C to +50°C Environment.
Additional Information
| Globe/Lens | Clear Flat Prismatic Glass, Low-Glare SoftLED |
|---|---|
| Controls & Options | Double Fuse, Microwave/Motion Sensor, Single Fuse |
| CCT | 5K |
