Description

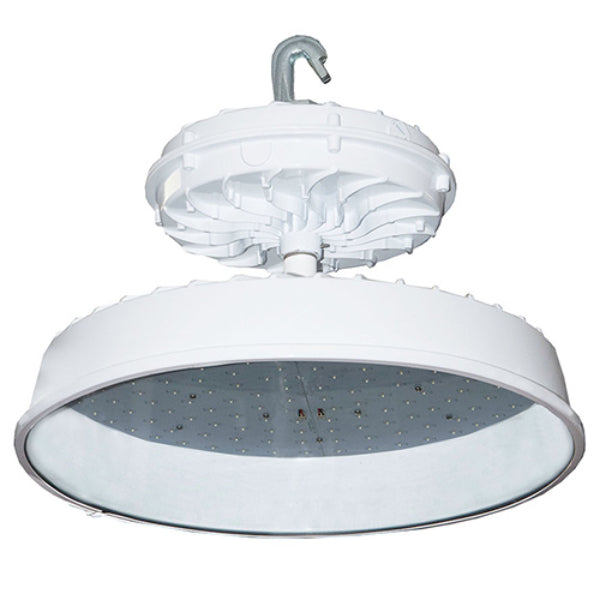

Pemco Lighting Chesapeake 45 22" Narrow Beam High Bay for Wet Locations
Specifications & Features
Housing:
- Die Cast Aluminum Housing with External Heat Sinks for Cooler Operating Temperatures. Includes 4" Stem.
Listing & Ratings:
- ETL: Listed for Damp Locations, ANSI/UL 1598, 8750 (Lens Gasket Use Required); IP65 Sealed LED Compartment.
Finish:
- White Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens:
- Tempered Clear Flat Glass Lens, UV-Stabilized Polycarbonate Drop Lens, Acrylic Drop Lens, Acrylic Conical Lens.
Mounting Options:
- Mount with Included 1" Die Cast Hook.
EasyLED LED:
- Aluminum Boards
Wattage:
- Array: 275.4w, System: 296.4w; (400-1000w HID Equivalent)
Driver:
- Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Controls:
- Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with LEPG Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.
Warranty:
- 5-Year Warranty for -40°C to +50°C Environment.
Additional Information
| Distribution | Narrow |
|---|---|
| CCT | 5K |
| Globe/Lens | Clear Flat Tempered Glass |
| Controls & Options | Battery Backup, Double Fuse, Microwave/Motion Sensor, Single Fuse |
