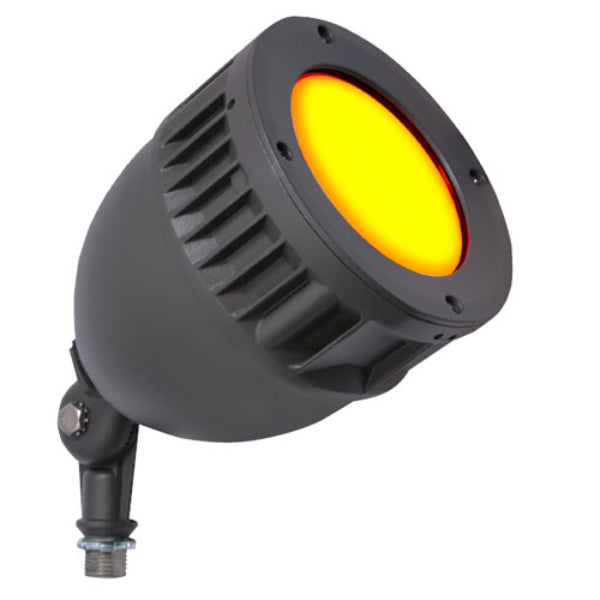

Pemco Lighting Compass Amber LED Mini Flood Light
Specification and Features:
Housing:
Die-Cast Gasketed Aluminum Housing and Front Frame with Integral Heat-Dissipating Fins for Thermal Management. Nickel-Plated Stainless Steel Hardware.
Listing & Ratings:
ETL: Listed for Wet Locations, ANSI/UL 1598, 8750 IP66 Sealed LED Compartment.
Finish:
Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens:
Tempered Clear Flat Glass Lens.
Mounting Options:
Adjustable Knuckle with ½" NPS Threads.
AmberLED:
Aluminum Boards
Wattage:
AmberLED Array: 17w, System 21w
Driver:
Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Warranty:
5-Year Warranty for -40°C to +50°C Environment.
Additional Information
| CCT | |
|---|---|
| Distribution | |
| Quick Ship/BAA |
