Description

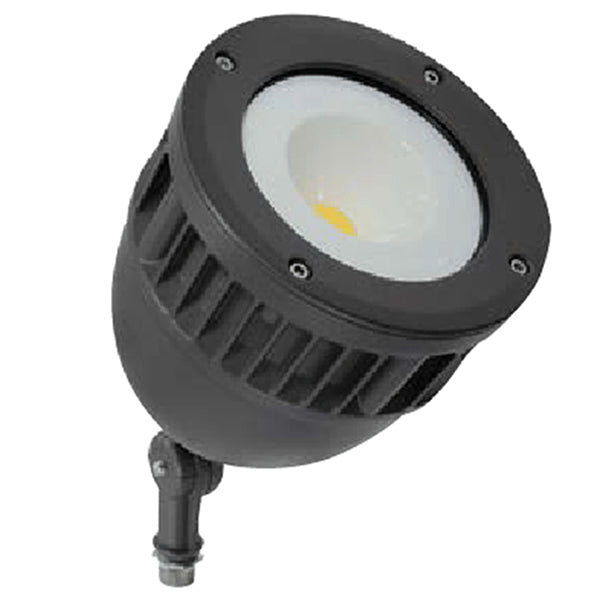

Pemco Lighting Compass Mini-Outdoor Flood Light
Specifications & Features
Housing:
- Die-Cast Gasketed Aluminum Housing and Front Frame with Integral Heat-Dissipating Fins for Thermal Management. Nickel-Plated Stainless Steel Hardware.
Listing & Ratings:
- ETL: Listed for Wet Locations, ANSI/UL 1598, 8750 IP65 Sealed LED Compartment Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request. Upon Request.
Lens:
- Tempered Clear Flat Glass Lens.
LED:
- Pemco Cool Copper COB (20W), Pemco EasyLED Array (16W)
Mounting Options:
- Adjustable Knuckle with ½" NPS Threads.
COB LED:
- 20 Watt, 21 Watt Input; Medium Beam (C) Only
Wattage:
- 20 Watt COB, 21 Watt Input; Wide (B) or Narrow (D) Only, 16 Watt Array, 17 Watt Input
Driver:
- Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps. 12V: Electronic Driver, 12-17VAC Input, 50/60Hz, Non-Dimmable
Warranty:
- 5-Year Warranty for -40°C to +50°C Environment. LM-79 Report Available on Select Models.
Additional Information
| Distribution | NEMA 4HX4V, NEMA 6HX6V, NEMA 7HX7V |
|---|---|
| CCT | 3K, 4K, 5K, 41K |
| Controls & Options | Double Fuse, Single Fuse |
| Globe/Lens | Clear Flat Tempered Glass |
