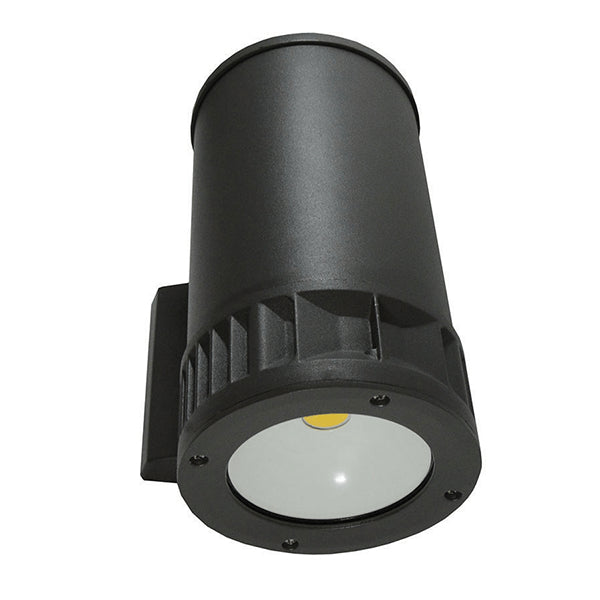

Pemco Lighting Compass Up or Down Wall Mount

Pemco Lighting Compass Up or Down Wall Mount

Specifications & Features

Housing:

• Extruded Round Aluminum Housing with Built-in Heat Sinks.

Listing & Ratings:

• ETL: Listed for Wet Locations, ANSI/UL 1598, 8750 IP65 Sealed LED Compartment. Finish: Textured Architectural Bronze or Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

Lens:

• Tempered Clear Flat Glass Lens. Reflector: Wide, Medium and Narrow Distributions.

Mounting Options:

• Mount Over a 4? Recessed Outlet Box.

Lumen Output:

• 1,750 - 2,380

COB Wattage:

• 20 Watt, 21 Watt Input

LED Array Wattage:

• 16 Watt Array, 17 Watt Input

CCT:

• 3000K, 4000K, 5000K (Array); 4100K (COB)

Lighting Distribution:

• Medium (Array Only), Narrow Beam, Wide

Driver:

• Electronic Driver, 120-277V, 50/60Hz; Dimmable Driver

Warranty:

• 5-Year Warranty for -40°C to +50°C Environment. LM-79 Report Available on Select Models.

Additional Information

Product Files

Click for Pemco Lighting CMPRS Spec Sheet
