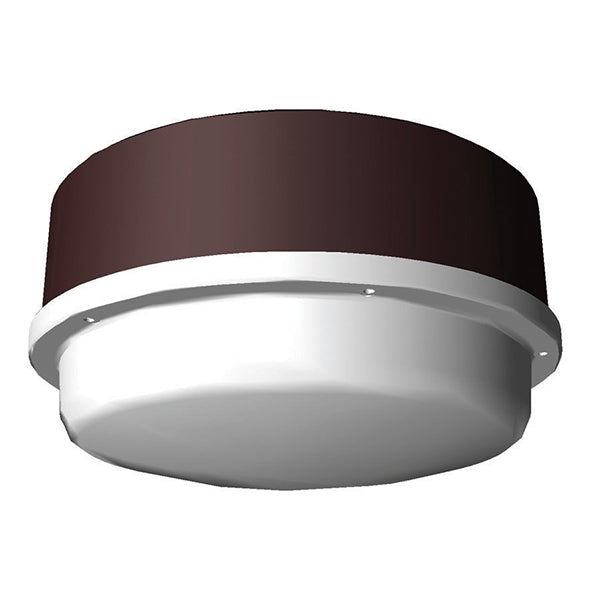

Pemco Lighting Crest 34 Parking Garage Light

Pemco Lighting Crest 34 Parking Garage Light

Specifications & Features

Housing:

• Die Cast Aluminum Housing, Nickel-Plated Stainless Steel Hardware.

Listing & Ratings:

• ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP65 Sealed LED Compartment.

Finish:

• Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

Lens:

• SoftLED Low Profile LumaLens Opal UV-Stabilized Polycarbonate Vandal-Resistant Lens

Mounting Options:

• Included Easy-Hang Bracket Fits Standard 4" Electrical Box, Allowing One-Person Installation.

EasyLED LED:

• Aluminum Boards

Wattage:

• Array: 34w, System: 38.9w; (100w HID Equivalent) Driver: Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 4kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.

Controls:

• Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with LEPG Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.

Warranty:

• 5-Year Warranty for -40°C to +40°C Environment

Additional Information

Product Files

Click for Pemco Lighting CREST34-PG Spec Sheet
