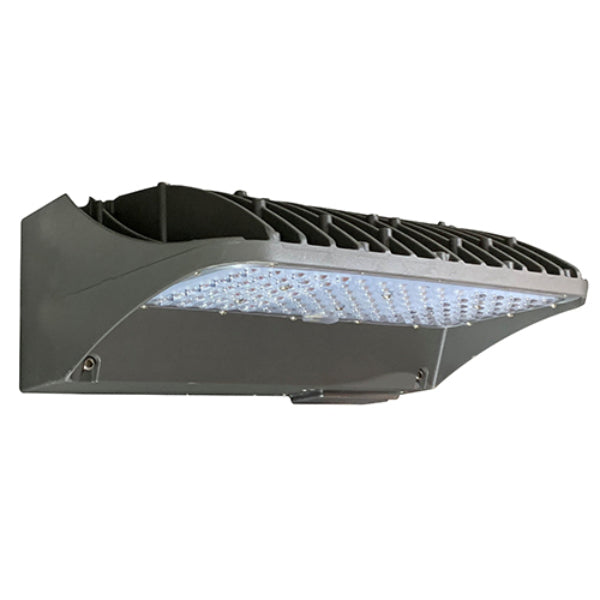

Pemco Lighting Crest 45 Wall Mount

Pemco Lighting Crest 45 Wall Mount

Specifications & Features

Housing:

• Die Cast Aluminum Housing with Full Cutoff Front Frame, Integral Heat Sinking and Driver Compartment. Polycarbonate Vandal-Resistant Lens Area on Housing for Use with Microwave Sensors. Twist-Lock Photocell/Smart Controls Adaptable. Nickel-Plated Stainless Steel Hardware.

Listing & Ratings:

• ETL: Listed for Wet Locations, ANSI/UL 1598, 8750 IP66 Sealed LED Compartment.

Finish:

• Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

Lens:

• Clear One-Piece Molded Type IV Polycarbonate Lens.

Mounting Options:

• Mount Directly Over a 4? Recessed Outlet Box, Includes Easy-Hang "Two Hands Free" Wall Mounting Bracket with Built-In Level. Optional Trim Plate is Available for Use in Retrofit Applications to Cover Wall Surface Blemishes.

LED:

• Aluminum Boards - +/- 300K per CCT

Wattage:

• 81w: Array: 80.8w, System: 92.8w (175w HID Equivalent) 112w: Array: 111.9w, System: 131w (250w HID Equivalent) 174w: Array: 174.1w, System: 187.5w (400w HID Equivalent)

Driver:

• Electronic Driver, 120-277V, 50/60Hz, Dimmable Driver.

Warranty:

• 5-Year Warranty for -40°C to +50°C Environment.

Additional Information

Product Files

Click for Pemco Lighting CREST45 Spec Sheet
