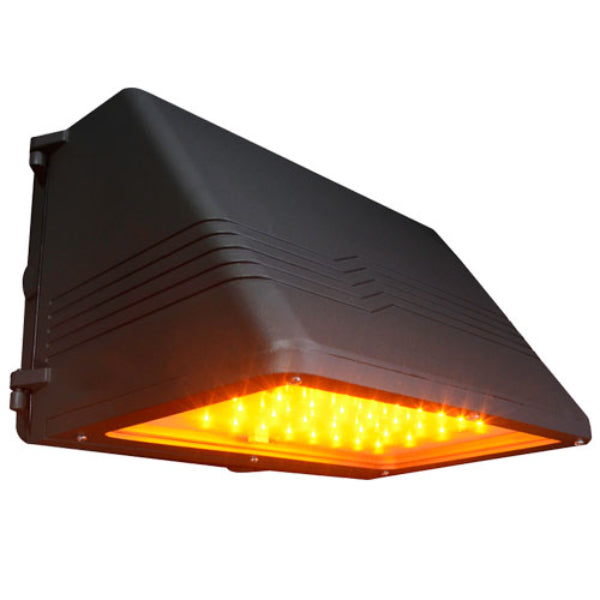

Pemco Lighting Crest15 1800K CCT LED Outdoor Wall Pack
Specifications & Features
Housing:
- Die Cast Hinged and Gasketed Aluminum Front Frame and Housing with ½" Coin Plugs. Nickel-Plated Stainless Steel Hardware. Photocell Adaptable.
Listing & Ratings:
- ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP65 Sealed LED Compartment.
Lens:
- Tempered Clear Flat Glass Lens or Tempered Clear Flat Prismatic Glass Lens.
Mounting Options:
- Cast-in Template for Mounting Directly Over a 4" Recessed Outlet Box, or Use ½" Surface Conduit.
1800K CCT LED:
- Aluminum Boards
Wattage:
- 36w Array: 40.4w; (35w SOX LPS Replacement)
Driver:
- Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Warranty:
- 5-Year Warranty for -40°C to +50°C Environment.
Additional Information
| CCT | 18K |
|---|---|
| Globe/Lens | Clear Flat Tempered Glass, Low-Glare SoftLED |
| Controls & Options | Double Fuse, Microwave/Motion Sensor, Single Fuse |
