Description

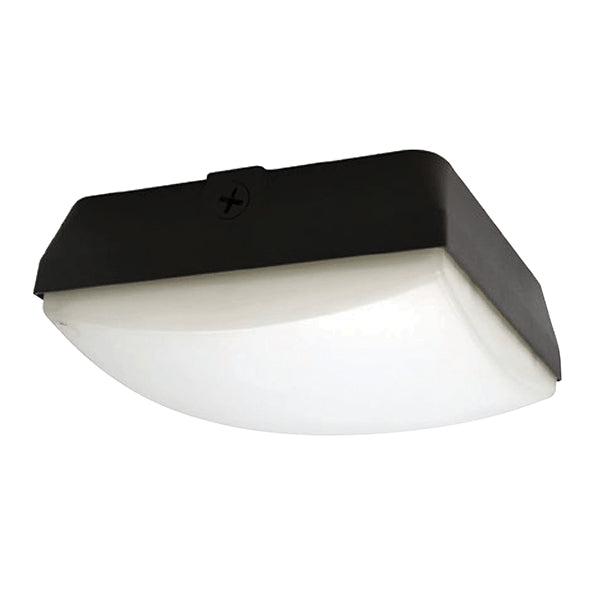

Pemco Lighting Delmar 34 Outdoor Parking Garage Light
Specifications & Features
Housing:
- Die Cast Aluminum Housing, ½? Coin Plugs with O-rings for Conduit & Photocell on Two Sides & Back, Nickel-Plated Stainless Steel Hardware
Listing & Ratings:
- ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment. ADA Compliant.
Finish:
- Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens:
- SoftLED Low Profile LumaLens Opal Polycarbonate Vandal-Resistant Lens
Mounting Options:
- Mount Directly Over a 4? Recessed Outlet Box, or Use ½? Surface Conduit
Radiant LED:
- Aluminum Boards
Wattage:
- Array: 21.7w, System: 27w; (100w HID Equivalent)
Driver:
- Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Controls:
- Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.
Warranty:
- 5-Year Warranty for -40°C to +40°C Environment
Additional Information
| Distribution | Type V |
|---|---|
| CCT | 4K, 5K |
| Globe/Lens | Low-Glare SoftLED, White/Opal Poly |
| Controls & Options | Battery Backup, Button-Eye Photo Control, Double Fuse, Single Fuse |
