Description

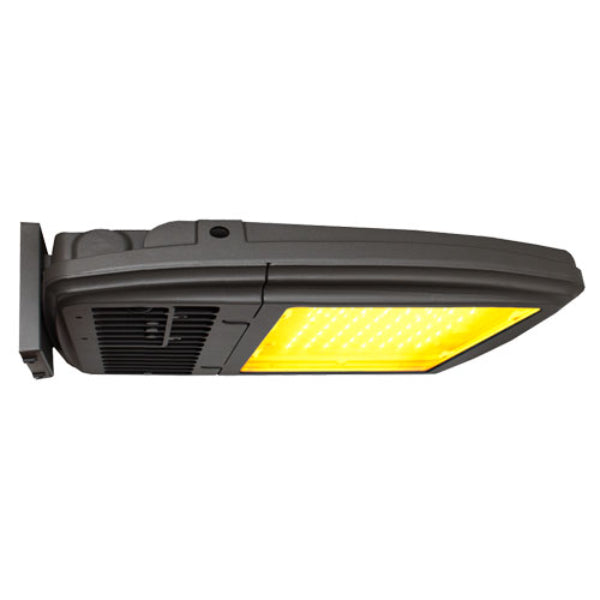

Pemco Lighting Eagle 25 1800K CCT LED Wall Light
Specifications & Features
Housing:
- Heavy-Duty Die Cast Aluminum Housing & Front Frame, Integral Heat Sinking, Driver Compartment. Photocell Adaptable.
Listing & Ratings:
- ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment.
Lens:
- Tempered Clear Flat Glass Lens.
Mounting Options:
- Mount with Two-Piece Swivel Bracket, Adjustable Slipfitter, Yoke, Mounting Arm Adaptor or Wall Mount Bracket.
1800K CCT LED:
- Aluminum Boards
Wattage:
- 126w Array: 126w, System: 137.6w; (90w SOX LPS Replacement).
Driver:
- Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Warranty:
- 5-Year Warranty for -40°C to +50°C Environment.
Additional Information
| Quick Ship/BAA | |
|---|---|
| CCT | |
| Globe/Lens | |
| Controls & Options |
