Description

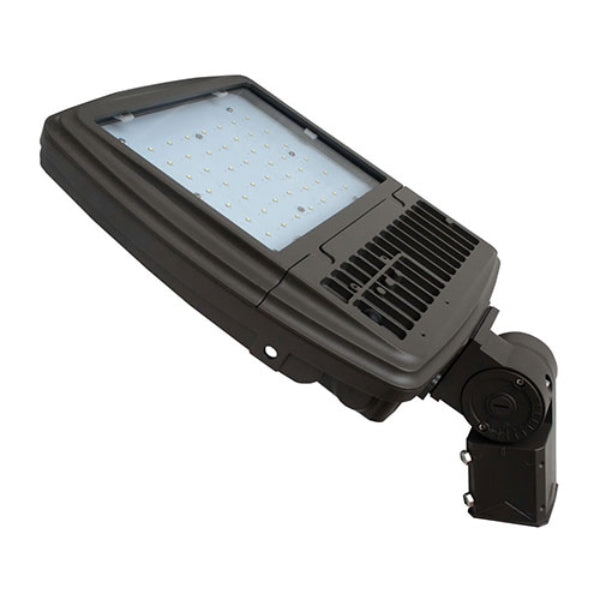

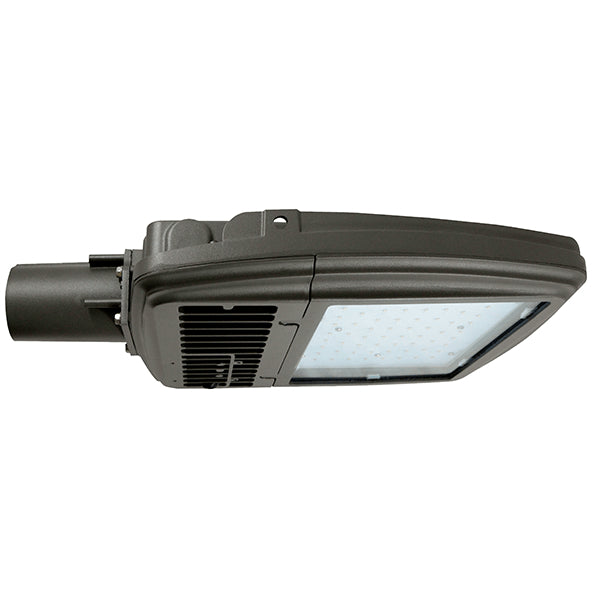

Pemco Lighting Eagle 25 Outdoor Flood Light
Specifications & Features
Housing:
- Die Cast Aluminum Housing and Front Frame, Integral Heat Sinking and Driver Compartment. Photocell Adaptable. Nickel-Plated Stainless Steel Hardware.
Listing & Ratings:
- ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment. Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens:
- Tempered Clear Flat or SoftLED Flat Glass Lens
Mounting Options:
- Mounts with Eagle Arm, Adjustable Slipfitter, 2?? Diameter Mounting Arm Adapter, Yoke, TwoPiece Bracket or Easy Hang Wall Bracket (Factory Installed).
Driver:
- Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz (81w Model Only); Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Controls:
- Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with LEPG Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.
Warranty:
- 5-Year Warranty for -40°C to +50°C Environment.
Additional Information
| Distribution | Type I, Type II, Type III, Type IV, Type V, NEMA 4HX4V, NEMA 6HX5V, NEMA 7HX5V, NEMA 7HX6V, NEMA 7HX7V |
|---|---|
| Wattage | 51W-100W, 101W-200W |
| CCT | 3K, 4K, 5K |
| Globe/Lens | Clear Flat Tempered Glass, Low-Glare SoftLED |
| Controls & Options | 3-Pin TwistLock Photocell Rec, 5-Pin TwistLock Photocell Rec, 7-Pin TwistLock Photocell Rec, Double Fuse, Microwave/Motion Sensor, Single Fuse |
