Description

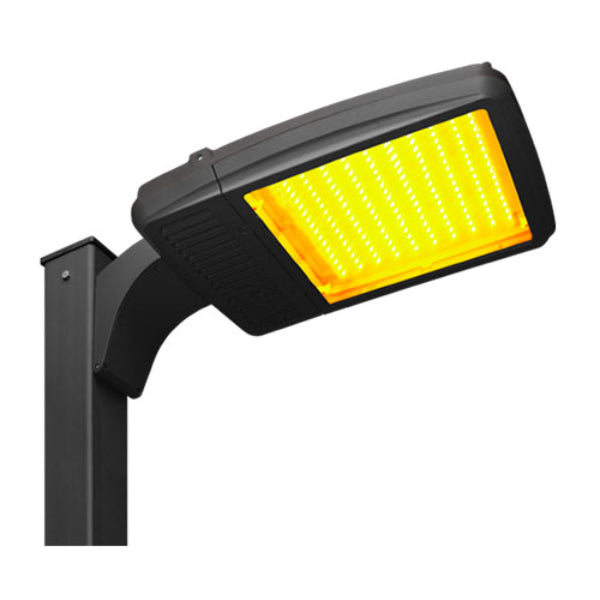

Pemco Lighting Eagle 45 1800K CCT LED Outdoor Area, Wall & Flood Light
Specifications & Features
Housing:
- Die Cast Aluminum Housing and Front Frame, Integral Heat Sinking and Driver Compartment. Photocell Adaptable. Nickel-Plated Stainless Steel Hardware.
Listing & Ratings:
- ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment.
Lens:
- Tempered Clear Flat or SoftLED Flat Glass, or Tempered Clear Flat Prismatic Glass Lens.
Mounting Options:
- Mounts with Kitty Hawk Arm, Adjustable Slipfitter, 2 3/8" Diameter Mounting Arm Adapter, Yoke, Two-Piece Bracket or Wall Mount Bracket. (Factory Installed)
1800K CCT LED:
- Aluminum Boards
Wattage:
- 76w: Array: 76w, System: 82w; (55w SOX LPS Replacement)
Driver:
- Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a
Warranty:
- 5-Year Warranty for -40°C to +50°C Environment.
Additional Information
| CCT | 18K |
|---|---|
| Globe/Lens | Clear Flat Tempered Glass, Low-Glare SoftLED |
| Controls & Options | Double Fuse, Microwave/Motion Sensor, Single Fuse |
