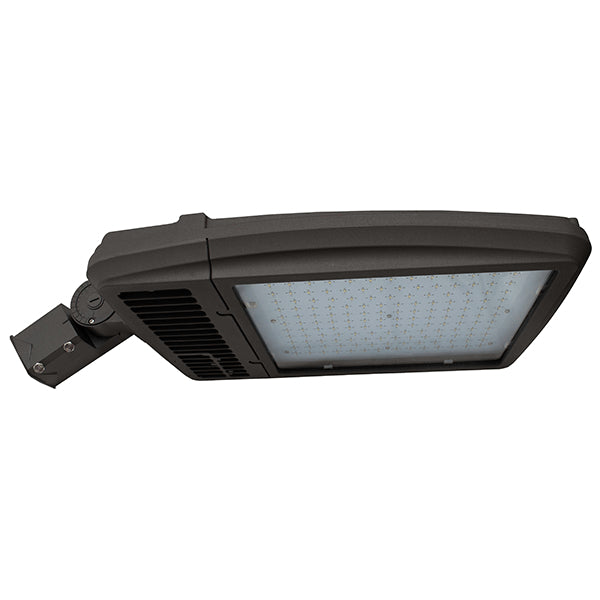

Pemco Lighting Eagle 45 Ace Pickleball Sports Lighter
Specifications & Features
Housing:
- Die Cast Aluminum Housing and Front Frame, Integral Heat Sinking and Driver Compartment. Photocell Adaptable. Nickel-Plated Stainless Steel Hardware.
Optics:
- Forward Throw, Court Optic; Type IV/NEMA 7H x 6V
Listing & Ratings:
- ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment.
Finish:
- Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens:
- Tempered Clear Flat or SoftLED Flat Glass, or Tempered Clear Flat Prismatic Glass Lens.
Wattages:
- Multiple Wattages Available: 99w, 111w, 133w, 136w, 167w, 183w, 199w, 225w, 256w, 272w, 290w, 315w
Driver:
- Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Controls:
- Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with LEPG Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.
Warranty:
- 5-Year Warranty for -40°C to +50°C Environment
Additional Information
| Quick Ship/BAA |
3 Day |
| Distribution |
Forward Throw Court Optics for Sports , NEMA 7HX6V |
| Wattage |
51W-100W , 101W-200W , >200W |
| CCT |
3K , 4K , 5K |
| Globe/Lens |
Clear Flat Prismatic Glass , Clear Flat Tempered Glass , Low-Glare SoftLED |
| Controls & Options |
3-Pin TwistLock Photocell Rec , 5-Pin TwistLock Photocell Rec , 7-Pin TwistLock Photocell Rec , Double Fuse , Microwave/Motion Sensor , Single Fuse |
Product Files
Click for Pemco Lighting EG45Q-PB Spec Sheet
