Pemco Lighting Eagle 55 Area and Flood Mount

Pemco Lighting Eagle 55 Area and Flood Mount

Specifications & Features

Housing:

• Die Cast Aluminum Housing and Front Frame, Integral Heat Sinking and Driver Compartment. Photocell Adaptable. Nickel-Plated Stainless Steel Hardware.

Listing & Ratings:

• ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

Lens:

• Tempered Clear Flat or SoftLED Flat Glass, or Tempered Clear Flat Prismatic Glass Lens.

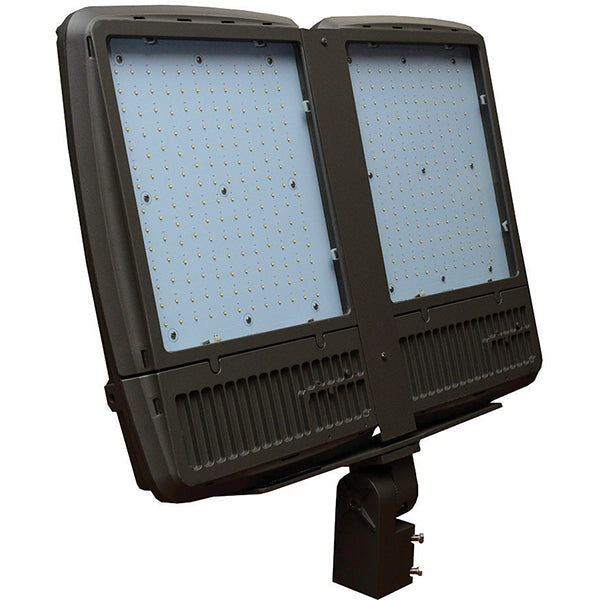

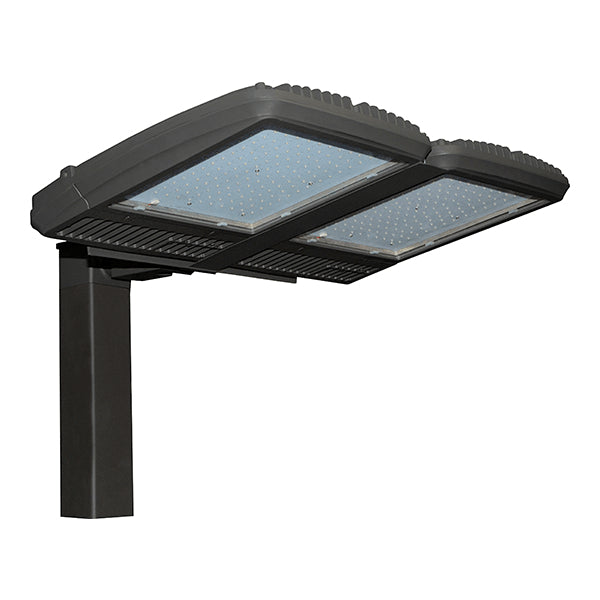

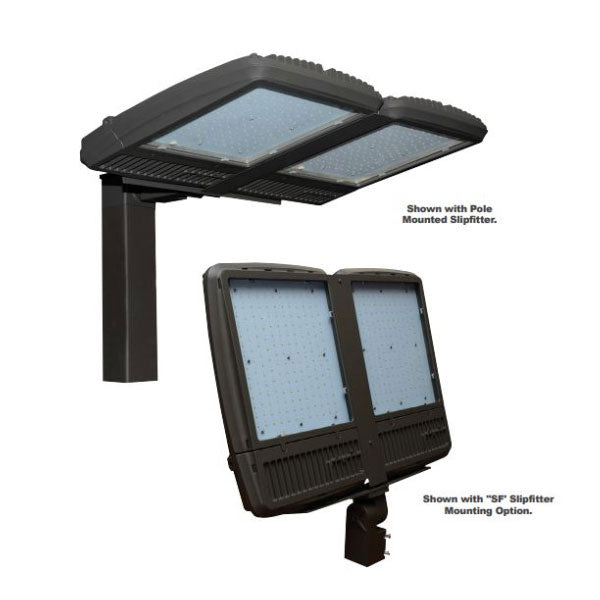

Mounting Options:

• Mounts with Adjustable Slipfitter. (Factory Installed)

EasyLED:

• Aluminum Boards

Wattage:

• 334w Array: 512w, System: 354w; (400-750ww HID Equivalent) 512w Array: 512w, System: 557w; (1000-1500w HID Equivalent) See Optimized Spec Sheet for additional Wattage Options.

Driver:

• Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps

Controls:

• Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.

Warranty:

• 5-Year Warranty for -40°C to +50°C Environment

Additional Information

Product Files

Click for Pemco Lighting EG55Q-AL Spec Sheet

Click for Pemco Lighting EG55Q-AL Product Brochure
