Description

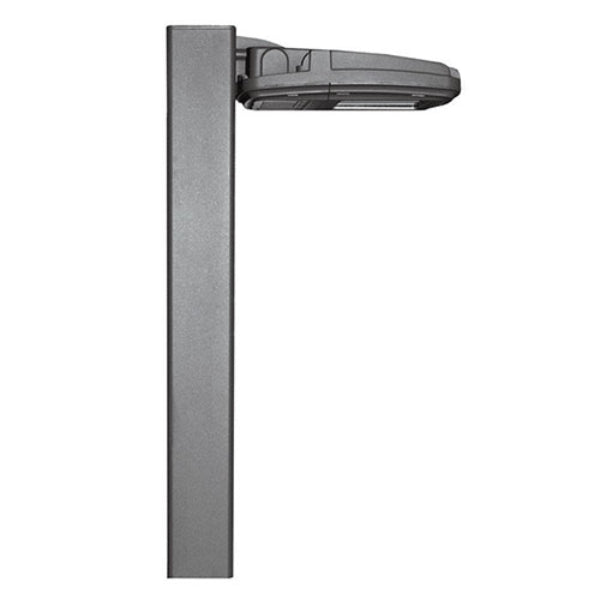

Pemco Lighting Eagle Single Outdoor Bollard Light
Specifications & Features
Housing:
- Extruded Aluminum Housing with Flush Mounting Base & Vandal-Resistant Screws. Fixture has Die Cast Aluminum Housing and Front Frame, Integral Heat Sinking and Driver Compartment. Nickel-Plated Stainless Steel Hardware.
Listing & Ratings:
- ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment.
Finish:
- Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens:
- Tempered Clear Flat or SoftLED Flat Glass Lens
Mounting Options:
- Mounting Kit with 8? Anchor Bolts, Included.
EasyLED LED:
- Aluminum Boards
Wattage:
- 22w Array: 21.7w, System: 23.8w; 37w: Array: 37.2w, System: 43w; 44w Array: 43.4w, System: 47.6w; 74w: Array: 74.4w, System: 86w
Driver:
- Electronic Driver, 120-277V, 50/60Hz or 347V, 50/60Hz (37w Model Only); Less Than 20% THD and PF>0.90. Standard Internal Surge Protection is 2kV for 22w, 6kV for 37w. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Controls:
- Fixtures Ordered with Factory-Installed Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory.
Warranty:
- 5-Year Warranty for -40°C to +50°C Environment.
Additional Information
| Distribution | Type III, Type V, NEMA 7HX7V |
|---|---|
| CCT | 3K, 4K, 5K |
| Globe/Lens | Clear Flat Tempered Glass, Low-Glare SoftLED |
| Controls & Options | Double Fuse, GFI, Microwave/Motion Sensor, Single Fuse |
| Manufacture | BAA |
