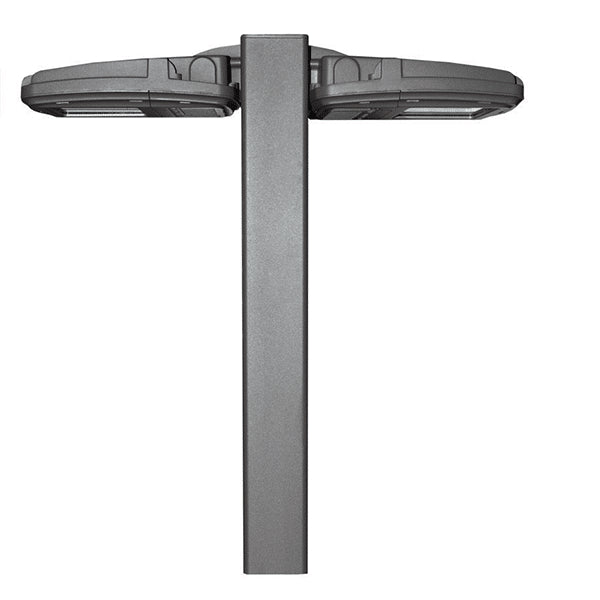

Pemco Lighting Eagle Twin Bollard Light

Pemco Lighting Eagle Twin Bollard Light

Specifications & Features

Housing:

• Extruded Aluminum Housing with Flush Mounting Base & Vandal-Resistant Screws. Fixture has Die Cast Aluminum Housing and Front Frame, Integral Heat Sinking and Driver Compartment. Nickel-Plated Stainless Steel Hardware.

Listing & Ratings:

• ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment.

Finish:

• Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

Lens:

• Tempered Clear Flat or SoftLED Flat Glass Lens

Mounting Options:

• Mounting Kit with 8? Anchor Bolts, Included.

EasyLED LED:

• Aluminum Boards

Wattage:

• 22w Array: 21.7w, System: 23.8w; 37w: Array: 37.2w, System: 43w; 44w Array: 43.4w, System: 47.6w; 74w: Array: 74.4w, System: 86w

Driver:

• Electronic Driver, 120-277V, 50/60Hz or 347V, 50/60Hz (37w Model Only); Less Than 20% THD and PF>0.90. Standard Internal Surge Protection is 2kV for 22w, 6kV for 37w. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.

Controls:

• Fixtures Ordered with Factory-Installed Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory.

Warranty:

• 5-Year Warranty for -40°C to +50°C Environment.

Additional Information

Product Files

Click for Pemco Lighting EGB2Q Spec Sheet
