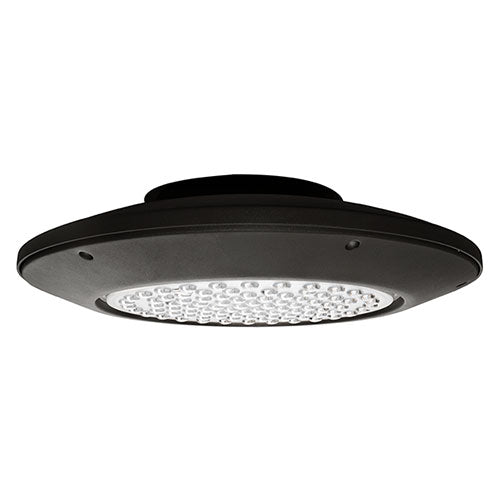

Pemco Lighting Enterprise 30 Round Parking Garage

Pemco Lighting Enterprise 30 Round Parking Garage

Specifications & Features

Housing:

• Die Cast and Sand Cast Aluminum Housing, Integral Heat Sinking. Includes 3' Cord.

Listing & Ratings:

• ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP65

Finish:

• Bronze or White Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

Lens:

• Clear Polycarbonate Vandal-Resistant Array Lens with Integral Optics. Gasketed to Seal LED Array Mounting Options: Surface Mount Model (NM) Includes Easy-Hang Bracket Allowing One-Person Installation, Fits Standard 4" Electrical Box. Adjustable Height Trunnion (T) and Pendant (PA) Models are Shipped Ready For Field Installation of the Mount. Mounts are Shipped in a Separate Carton.

EasyLED LED:

• Aluminum Boards

Wattage:

• 37w Array: 37w, System: 41w; (70-150w HID Equivalent) 65w Array: 65.3w, System: 72w; (150-250w HID Equivalent) 100w Array: 100w, System: 111w; (150-250w HID Equivalent) 140w Array: 139.9w, System: 156w; (250-400w HID Equivalent)

Driver:

• Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.

Controls:

• Fixtures Ordered with Factory-Installed Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with LEPG Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.

Warranty:

• 5-Year Warranty for -40°C to +50°C Environment.

Additional Information

Product Files

Click for Pemco Lighting ENT30GAR Spec Sheet

Click for Pemco Lighting ENT30GAR Brochure
