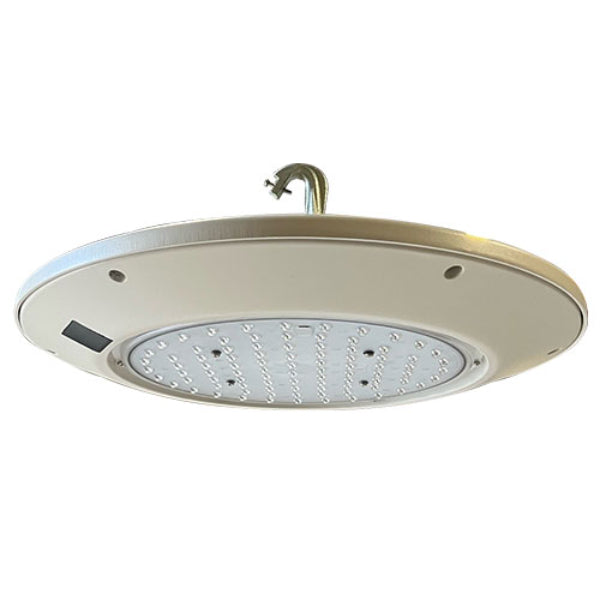

Pemco Lighting Enterprise 30HB High Bay

Pemco Lighting Enterprise 30HB High Bay

Specifications & Features

Housing:

• Die Cast Aluminum Housing, Integral Heat Sinking. Includes 3' Cord.

Listing & Ratings:

• ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; ENT30HBQ: IP54, Damp Locations; ENT30HBWQ: IP65, Wet Locations

Finish:

• Bronze or White Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

Lens:

• Clear UV-Stabilized Polycarbonate Vandal-Resistant Array Lens with Integral Optics or SoftLED LumaLens Opal UV-Stabilized Polycarbonate Vandal-Resistant Lens. Gasketed to Seal LED Array.

Mounting Options:

• Mount with Included ¾" Die Cast Hook.

EasyLED LED:

• Aluminum Boards

Wattage:

• 65w Array: 65.3w, System: 72w; (150-250w HID Equivalent) 100w Array: 100w, System: 111w; (150-250w HID Equivalent) 140w Array: 139.9w, System: 156w; (250-400w HID Equivalent)

Driver:

• Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.

Controls:

• Fixtures Ordered with Factory-Installed Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with LEPG Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.

Warranty:

• 5-Year Warranty for -40°C to +50°C Environment.

Additional Information

Product Files

Click for Pemco Lighting ENT30HBQ Spec Sheet
