Description

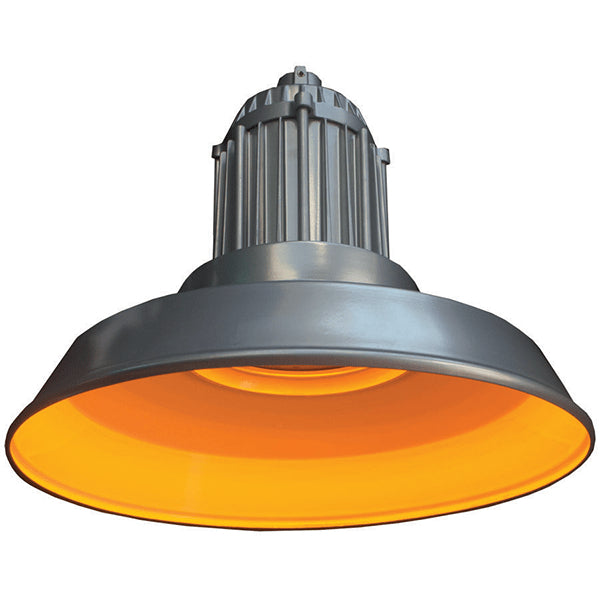

Pemco Lighting FWC AmberLED Vaporproof - Straight Shade
Specifications & Features
Housing:
- Heavy Duty Die Cast Aluminum Housing with Integral Heat Sinking, ¾? NPS Threaded Mounts. Includes Shade Required to Maintain FWC Certification.
Listing & Ratings:
- ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment
Finish:
- Smooth Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens:
- Flat Clear Tempered Glass Lens
Mounting Options:
- Pendant Mount or Surface Mount on Ceiling.
AmberLED:
- Aluminum Boards
Wattage:
- Array: 22w, System: 27w; (175w HID Equivalent)
Driver:
- Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Warranty:
- 5-Year Warranty for -40°C to +50°C Environment
Additional Information
| Quick Ship/BAA | |
|---|---|
| Distribution | |
| Controls & Options |
Product Files
