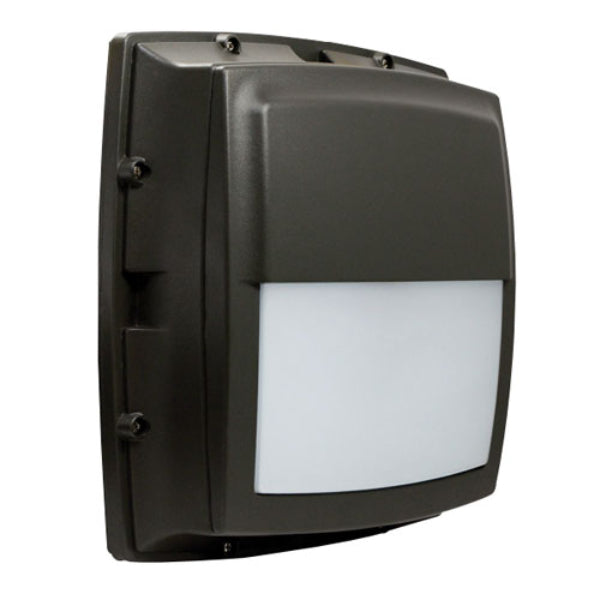

Pemco Lighting Hatteras Square Half Cutoff Wall Mount

Pemco Lighting Hatteras Square Half Cutoff Wall Mount

Specifications & Features

Housing:

• Die Cast Gasketed Aluminum Half Cutoff Front Frame and Housing with Integral Heat Sinking and Driver Compartment. Nickel-Plated Stainless Steel Hardware. Photocell Adaptable.

Listing & Ratings:

• ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment.

Finish:

• Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

Lens:

• SoftLED LumaLens UV-Stabilized Polycarbonate Opal Vandal-Resistant Lens Eliminates LED Hot Spots

Mounting Options:

• Surface Mount

EasyLED LED:

• Aluminum Boards

Wattage:

• Array: 12w, System: 12.9w; (100w HID Equivalent) Array: 17w, System: 19.7w; (100w HID Equivalent) Array: 25w, System: 27.1w; (250w HID Equivalent)

Driver:

• Electronic Driver, 120-277V, 50/60Hz, 347V, 50/60Hz or 480-347V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.

Controls:

• Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with LEPG Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.

Warranty:

• 5-Year Warranty for -40°C to +50°C Environment.

Additional Information

Product Files

Click for Pemco Lighting HATSHCQ Spec Sheet
