Description

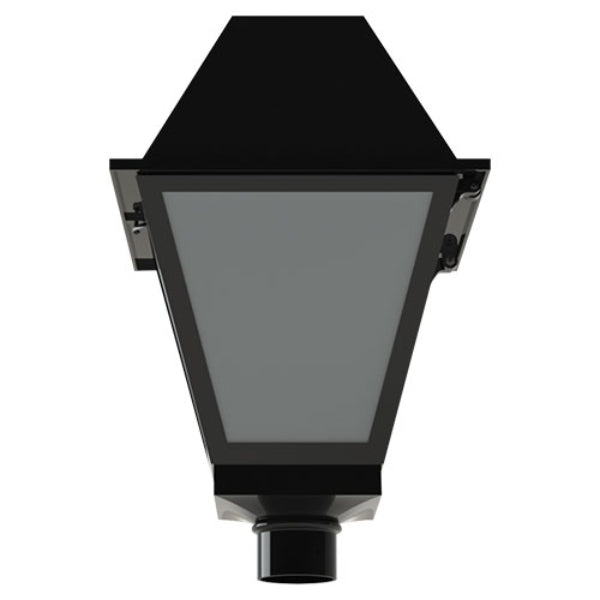

Pemco Lighting Heritage Outdoor Post Top
Specifications & Features
Light Engine:
- Radiant LED; CCT: Amber, LPS (18K), 22K, 27K, 3K, 4K, 5K
Optical:
- Types I, II, III, IV, V; Full Cutoff (No Lens option)
Electrical:
- 0-10V Electronic Dimmable Driver, 120-277V, 50/60Hz or 347/480V, 50/60 Hz; Surge protection
Available Controls:
- Button Eye Photo Control; 3-Pin Twist-Lock Receptacle; 7-Pin Twist-Lock Receptacle
Housing:
- Cast aluminum cage, roof and 3" slip fitter
Finish:
- Super durable polyester powder coat finish over a chromate conversion coating. Custom finishes available, including patinas and all RAL colors.
Listings & Ratings:
- ETL Listed to UL 1598 standard for wet location
Warranty:
- 5 year Limited Warranty
Additional Information
| Globe/Lens | Clear Acrylic, Clear Flat Tempered Glass, Clear Poly, Frosted Acrylic, Frosted Poly, Frosted Tempered Glass, No Secondary Lens, Patterned Acrylic, White/Opal Acrylic |
|---|---|
| Wattage | <50W, 51W-100W |
| CCT | 3K, 4K, 5K |
| Driver | 120-277V, 347/480V |
| Distribution | Full Cut-Off, Type I, Type II, Type III, Type IV, Type V |
| Controls & Options | 3-Pin TwistLock Photocell Rec, 7-Pin TwistLock Photocell Rec, Button-Eye Photo Control |
| Full Cut-Off | Yes |
| Made in the USA/BABA | Yes |
| Manufacture | BABA |
Product Files
