Description

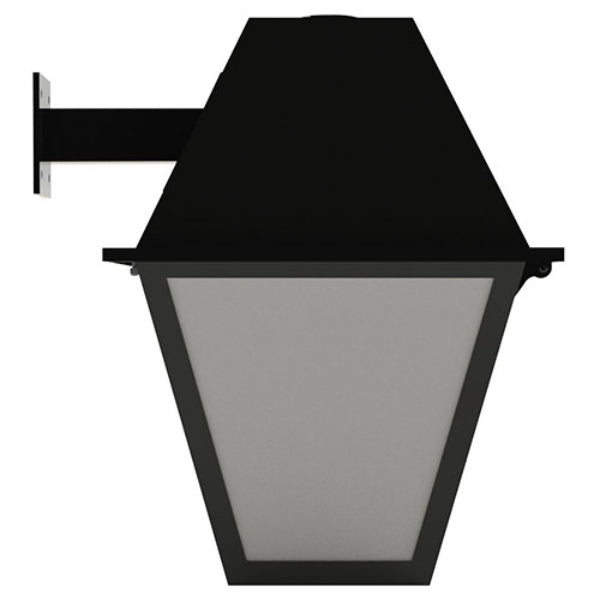

Pemco Lighting Heritage Outdoor Wall Mount
Specifications & Features
Radiant™ LED:
- Conformal Coating LED light engine
- CCT: Standard-3000K, 4000K, & 5000K
- 2700K, Amber, LPS (1800K) Offered for Some Wattages - Consult Factory
- Static Colors Available - Contact Factory
Distribution:
- Types I* II, III, IV, V (Type I Available in 70w & Higher Only)
Electrical:
- Electronic Driver, 120-277V, 50/60Hz or 347/480V, 50/60Hz
- 0-10V Dimmable Driver
- Standard Surge Protection Included (6kV Line-Line; 10kV Line-Earth)
Controls (Optional):
- Button Eye Photo Control (PC)
- 7-pin Twist-Lock Receptacle (PCR7) - Mounts on Top with GF26 (Y)
- 3-pin Twist-Lock Receptacle (PCR3)
Housing:
- Cast Aluminum Cage, Roof and 3" Slip Fitter
Finish:
- Super Durable Polyester Powder Coat Finish. Custom Finishes Available, Including Patinas and All RAL Colors.
Listings & Ratings:
- ETL Listed to UL 1598 Standard for Wet Location and IP66.
- LED is IP66 Rated
Additional Information
| Globe/Lens | Clear Acrylic, Clear Flat Tempered Glass, Clear Poly, Frosted Acrylic, Frosted Poly, Frosted Tempered Glass, No Secondary Lens, Patterned Acrylic, White/Opal Acrylic |
|---|---|
| Wattage | <50W, 51W-100W |
| CCT | 3K, 4K, 5K, Amber |
| Driver | 120-277V, 347/480V |
| Controls & Options | 3-Pin TwistLock Photocell Rec, 7-Pin TwistLock Photocell Rec, Button-Eye Photo Control |
| Full Cut-Off | Yes |
| Made in the USA/BABA | Yes |
| Manufacture | BABA |
