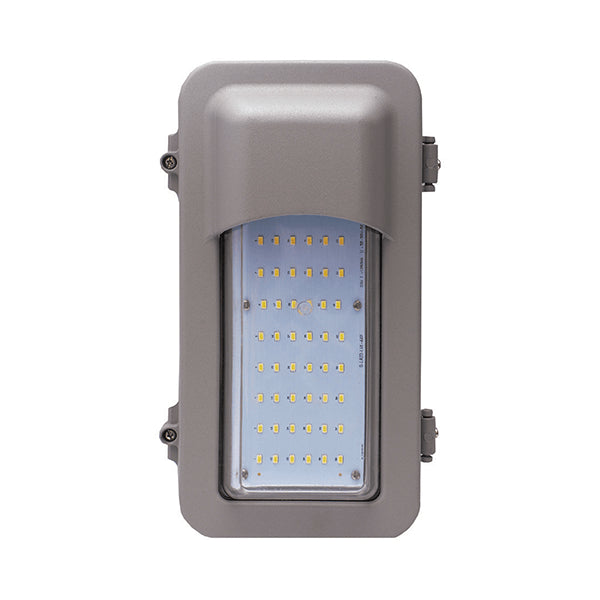

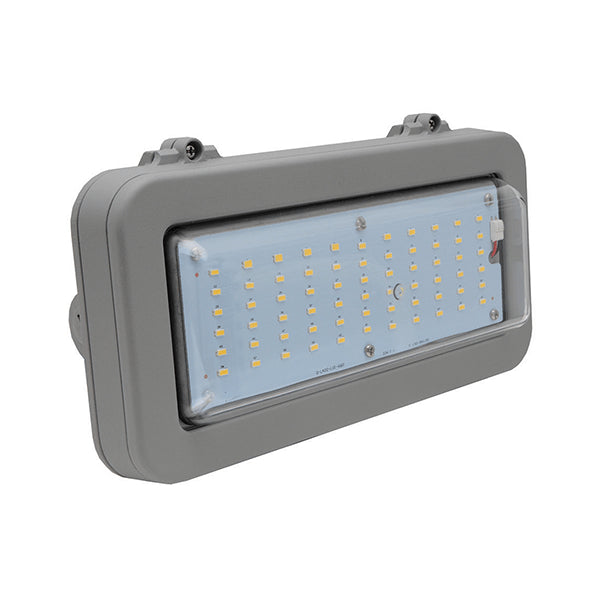

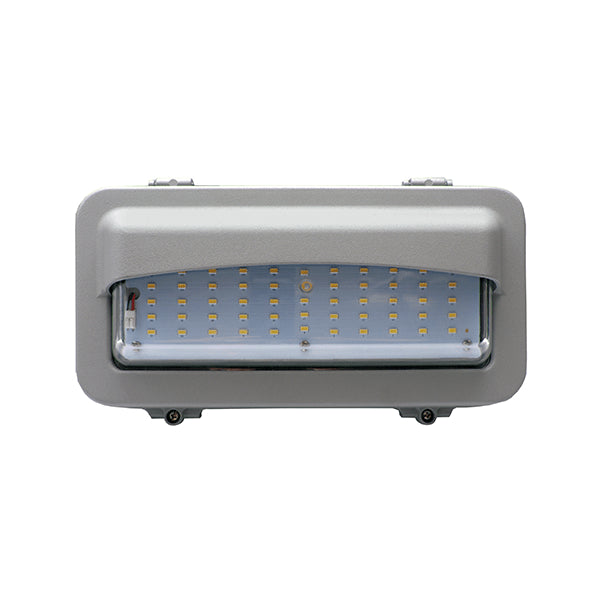

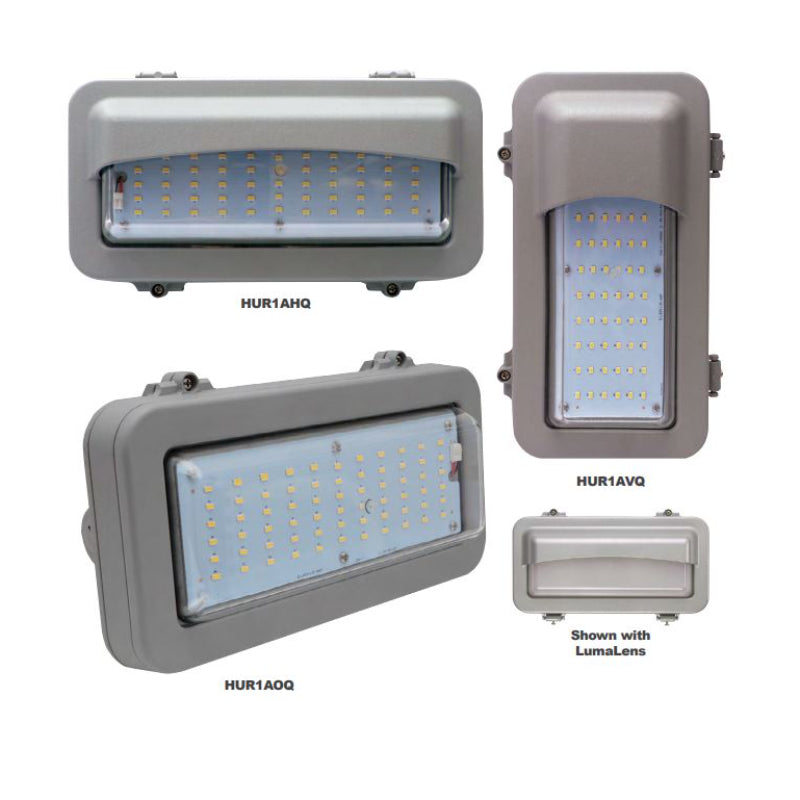

Pemco Lighting HUR1A Wall and Ceiling Mount
Specifications & Features
Housing:
- Heavy-Duty Die Cast Aluminum Housing and Top Frame, with ½? Tapped Coin Plug Openings for Wiring Entrance Conduits.
Listing & Ratings:
ETL Listed for Hazardous Locations Per UL844 as Follows:
- Class 1, Division 2 Groups A, B, C, D; T4 Temperature Rating
- Suitable for Wet Locations.
Finish:
- Platinum Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens:
- Clear UV-Stabilized Polycarbonate or SoftLED LumaLens Opal UV-Stabilized Polycarbonate Vandal-Resistant Lens
Mounting Options:
- Mount with Stainless Steel Adjustable Bracket or Yoke. Rated for 6 #12 AWG 90°C for Through Wiring.
EasyLED LED:
- Aluminum Boards
Wattage:
- 22w: Array: 22w, System: 26.4w; (70w HID Equivalent)
- 37w: Array: 37.2w, System: 43.4w; (175w HID Equivalent)
Driver:
- Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection is 2kV for 22w, 6kV for 37w. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Additional Information
| Quick Ship/BAA | |
|---|---|
| Distribution | |
| CCT | |
| C1D2 Compliant | |
| Globe/Lens |
