Description

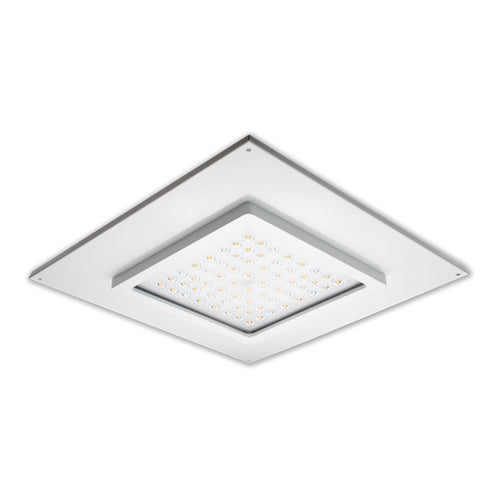

Pemco Lighting Outdoor LED Recessed Canopy
Specifications & Features
Housing:
- Die Cast Aluminum Driver Compartment with Formed Steel Plate.
Listing & Ratings:
- ETL: Listed for Covered Locations, ANSI/UL 1598, 8750; IP54 Sealed LED Compartment
Finish:
- White Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request
Lens:
- Molded Polycarbonate Optical Lens
Mounting Options:
- Recessed Mount
EasyLED LED:
- Aluminum Boards
Wattage:
- 30-65w Array Systems
Lumens:
- 4,590-7,939
Driver:
- Electronic Driver, 120-277V, 50/60Hz; 347V, 50/60Hz (30 & 37w Model Only); or 347-480V, 50/60Hz (30 & 37w Model Only) Less Than 20% THD and PF>0.90. Standard
Warranty:
- 5-Year Warranty for -40°C to +50°C Environment.
Additional information
| Lumen Output | 2501 - 5000 Lumens, 5001 - 10000 Lumens |
|---|---|
| Distribution | Type V |
| CCT | 3K ,4K ,5K |
| Globe/Lens | Low-Glare SoftLED ,White/Opal Poly |
| Controls & Options | Battery Backup ,Button-Eye Photo Control ,Double Fuse ,Single Fuse |
