Description

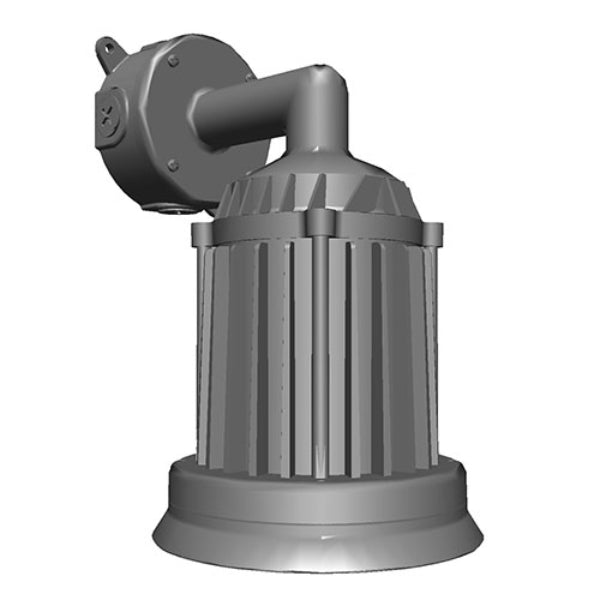

Pemco Lighting LEDICATED Wall Mount Vaporproof
Specifications & Features
Housing:
- Heavy Duty Die Cast Aluminum Housing with Integral Heat Sinking, ¾? NPS Threaded Mounts.
Listing & Ratings:
- ETL: Listed for Wet Locations, ANSI/UL 1598, 8750. IP66 Sealed LED Compartment.
Finish:
- Smooth Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens:
- Flat Clear Tempered Glass Lens.
Mounting Options:
- Pendant Mount or Surface Mount on Wall or Ceiling.
EasyLED LED:
- Aluminum Boards
Wattage:
- Array: 22w, System: 27w (175w HID Equivalent)
Driver:
- Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps
Warranty:
- 5-Year Warranty for -25°C to +40°C Environment
Additional Information
| Quick Ship/BAA | |
|---|---|
| Distribution | |
| CCT | |
| Globe/Lens |
Product Files
