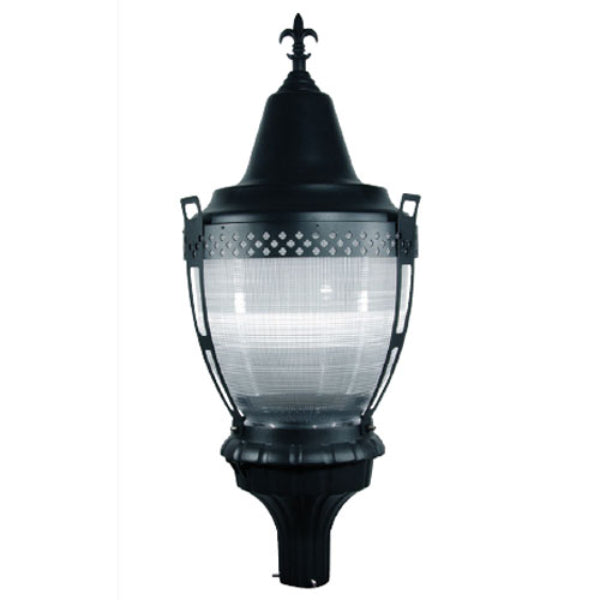

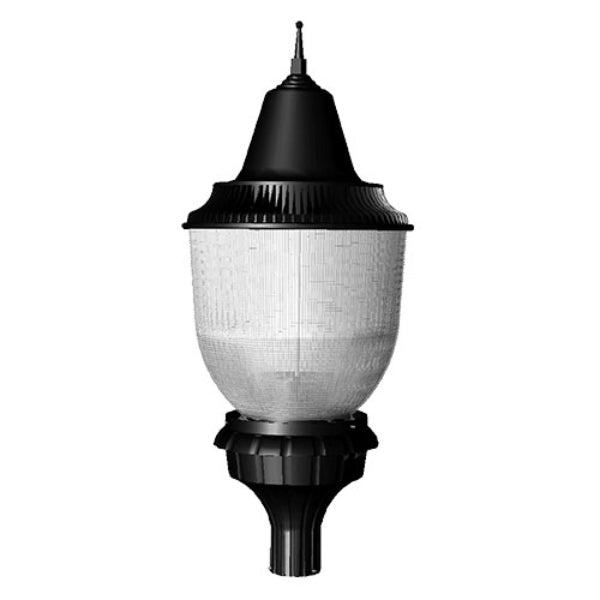

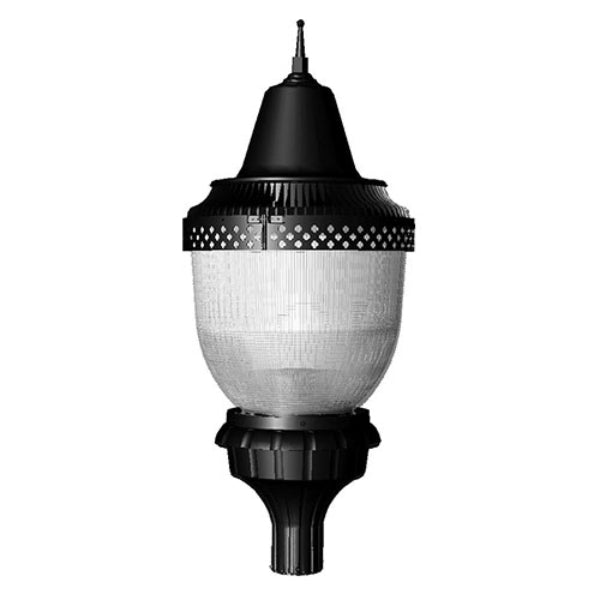

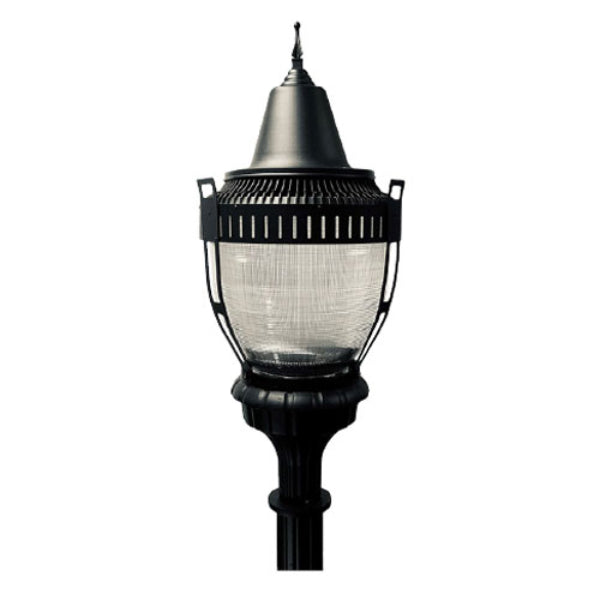

Pemco Lighting Lexington 3 Historic Post Top

Pemco Lighting Lexington 3 Historic Post Top

Specification and Features:

Housing:

• Sand Cast Aluminum Housing, Includes Mounting Hardware. Decorative Spun Aluminum Cap. Finals Have Spun Aluminum Base with Cast Aluminum Fleur-De-Lis or Spear. Stamped and Formed Heavy Duty Aluminum Clamp Bands. Available as Standard Clamp Band, Deluxe Clamp Band with Decorative Band, or Premium Clamp Band with Decorative Band with Three Decorative Supports. Includes Black Oxide Mounting Hardware.

Listing & Ratings:
ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment.

Finish:
Textured Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

Lens:
LexaLite Lindy Prismatic Acrylic Globes, Type III or Type V, with 9? Neck.

Mounting Options:
Accommodates "P3" 2?" O.D. x 3" Tenons

EasyLED:
Aluminum Boards; Array has IP67 rating

Wattage:
37w Array: 37w, System: 39w; (70-150w HID Equivalent)
65w Array: 65.1w, System: 68w; (150-250w HID Equivalent)
84w Array: 84w, System: 86w; (150-250w HID Equivalent)

Driver:
Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.

Controls:
Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with QSSI Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.

Additional Information

Product Files

Click for Pemco Lighting LEX3Q Spec Sheet
